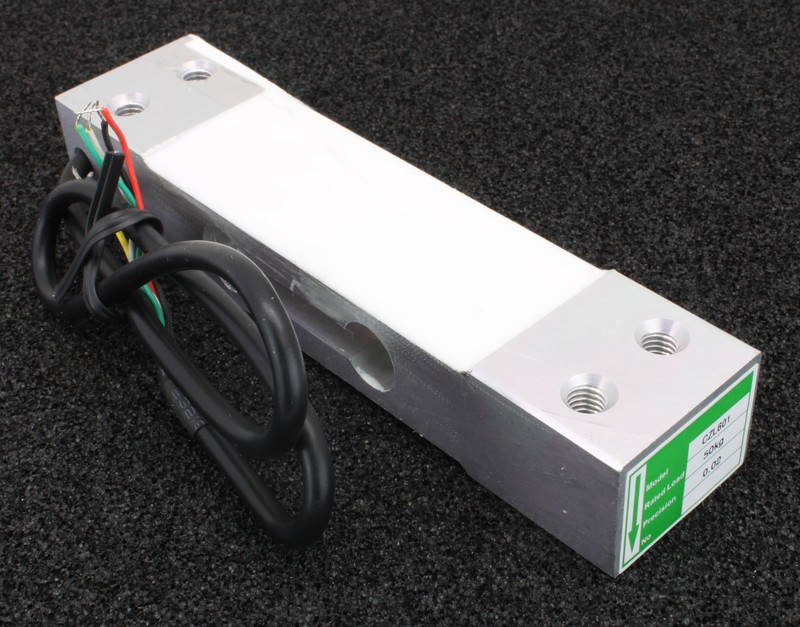

Load Cell 50kg CZL601

More Views

€12.99

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

Qty:

Description

This load cell is compatible to the Load Cell Bricklet 2.0.

Property	Value
Model	CZL601-50kg
Measurement Range	0kg to 50kg
Rated Output	2.0±0.2mV/V
Non-Linearity	0.013%FS
Hysteresis	0.016%FS
Repeatability	0.013%FS
Creep	0.02%FS/30min
Temperature Effect on Zero	0.02%FS/10°C
Temperature Effect on Span	0.03%FS/10°C
Zero Balance	±1.5%FS
Input Impedance	405±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥ 5000MΩ at 50V (DC)
Recommended Excitation Voltage	9V to 12V (DC)
Allowed Excitation Voltage	5V to 18V (DC)
Compensated Temperature Range	-10°C to +40°C
Operating Temperature Range	-20°C to +55°C
Safe Overload	120%FS
Ultimate Overload	150%FS
Connection	Excitation +: red Excitation -: black Signal +: green Signal -: white

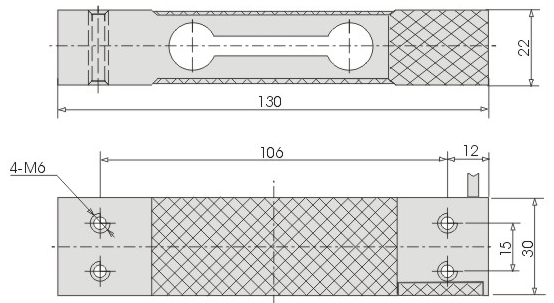

Dimensions (W x D x H)	130 x 30 x 22mm (5.12 x 1.18 x 0.87")
Weight	200g
Mounting	4x M6
