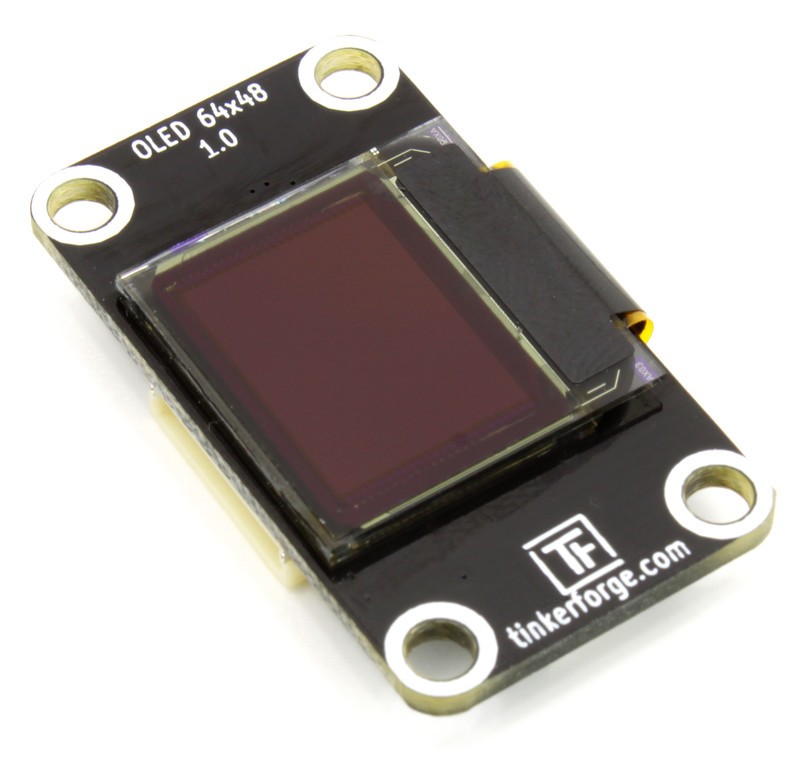

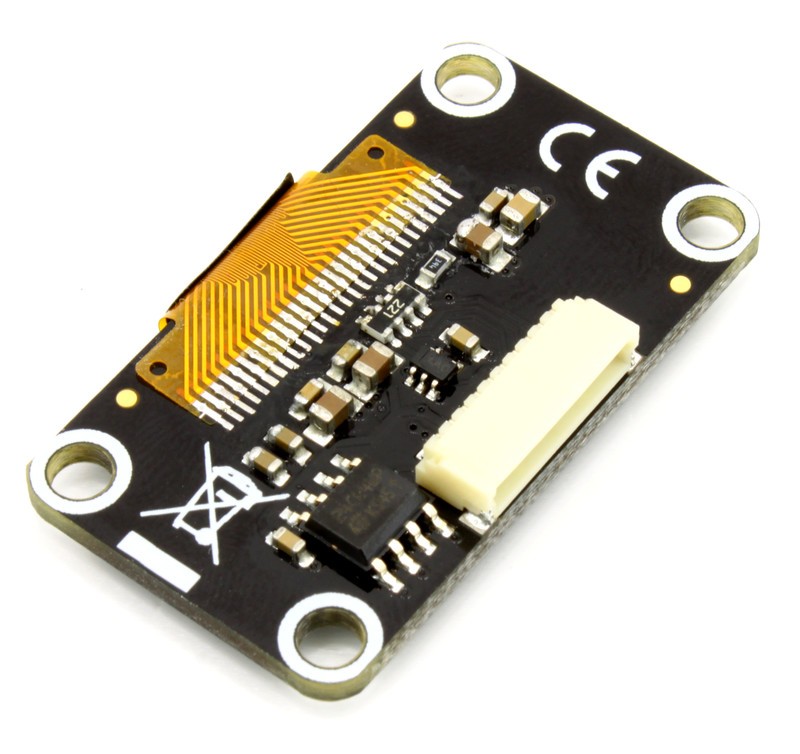

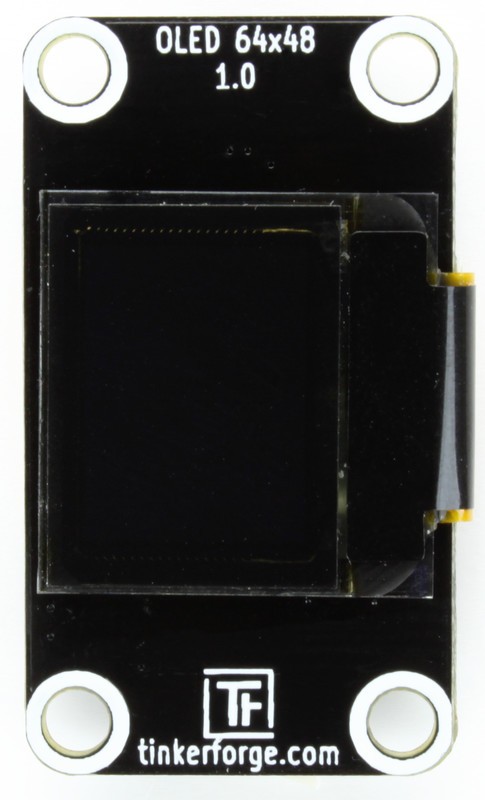

OLED 64x48 Bricklet

More Views

OLED 64x48 Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

Black/white OLED
Size of 1.68cm (0.66") with a resolution of 64x48

Bricklet*: OLED 64x48 Bricklet +€19.99
Qty:
Bricklet Cable: Qty:
Mounting Kit: Qty:

* Required Fields

Qty:

Description

Details

The OLED 64x48 Bricklet can be used to extend the features of Bricks with the capability to display information on a small 64x48 OLED display.

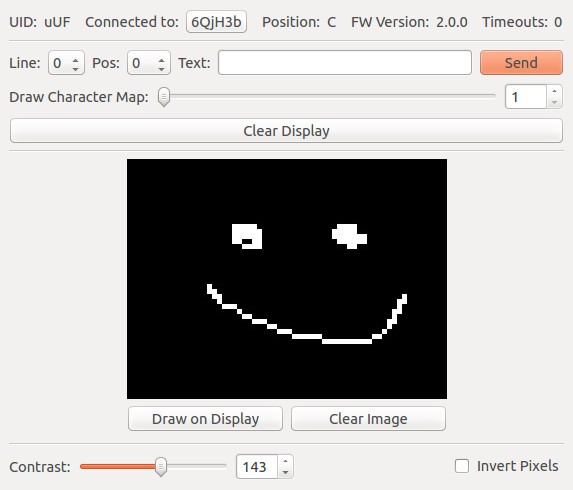

Because each pixel can be set individually, the display can do graphics. This allows for more versatile and detailled drawings on the display, compared to the LCD 20x4 Bricklet with its fixed character display.

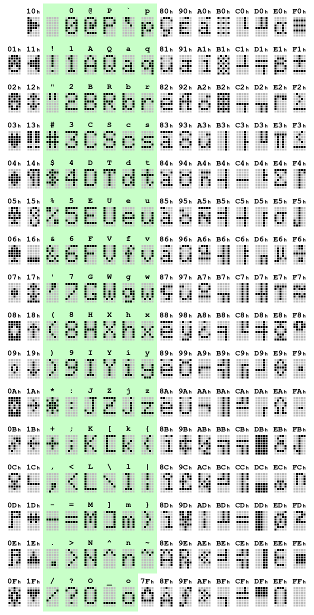

Additionally, text can easily be drawn onto the display with the embedded font of the Bricklet.

High update rates of up to 100Hz are possible.

A demo with the 128x64 pixel version, a Servo Brick and a Rotary Poti Bricklet is available on Youtube:

Technical Specifications

Property	Value
Current Consumption	10mW (2mA at 5V, all pixels black) 110mW (22mA at 5V, all pixels white)

Resolution	64x48 pixel, 13x6 characters
Size	1.68cm (0.66")
Colors	Black/White

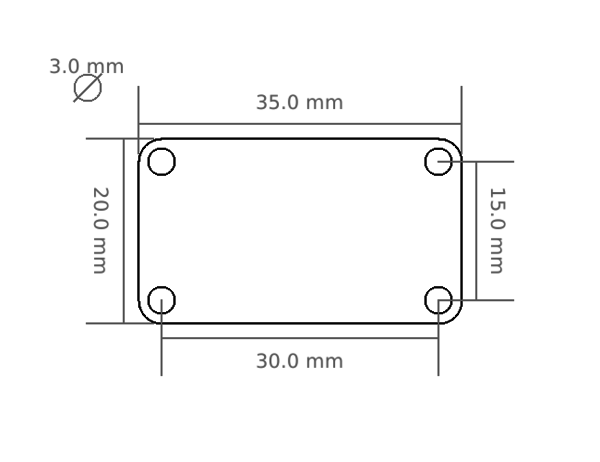

Dimensions (W x D x H)	35 x 20 x 7mm (1.38 x 0.79 x 0.28")
Weight	4g
