Analog In Bricklet 3.0

Analog In Bricklet 3.0

More Views

Analog In Bricklet 3.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures voltages up to 42V (DC)
  • Full-scale resolution of ~10mV
Analog In Bricklet 3.0   +€13.99

* Required Fields

Description

Details

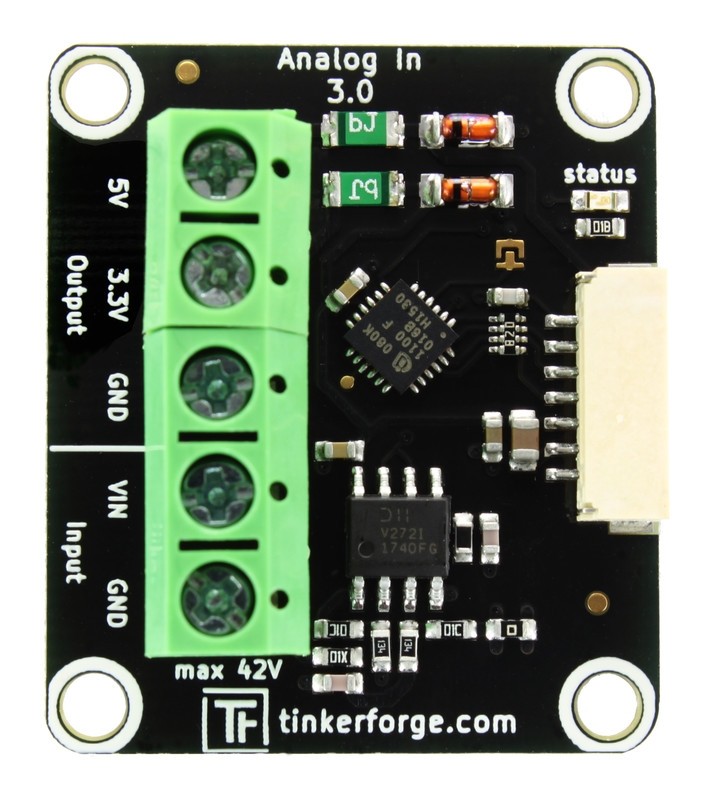

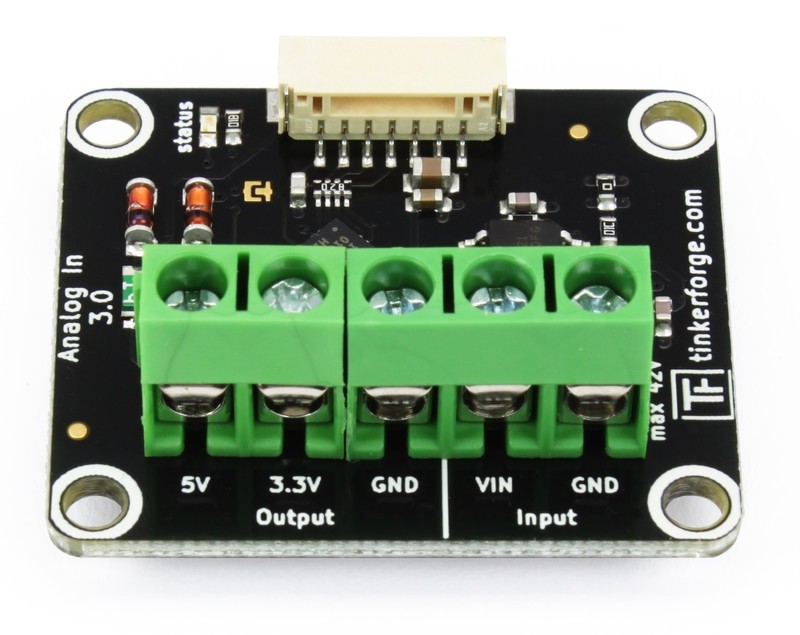

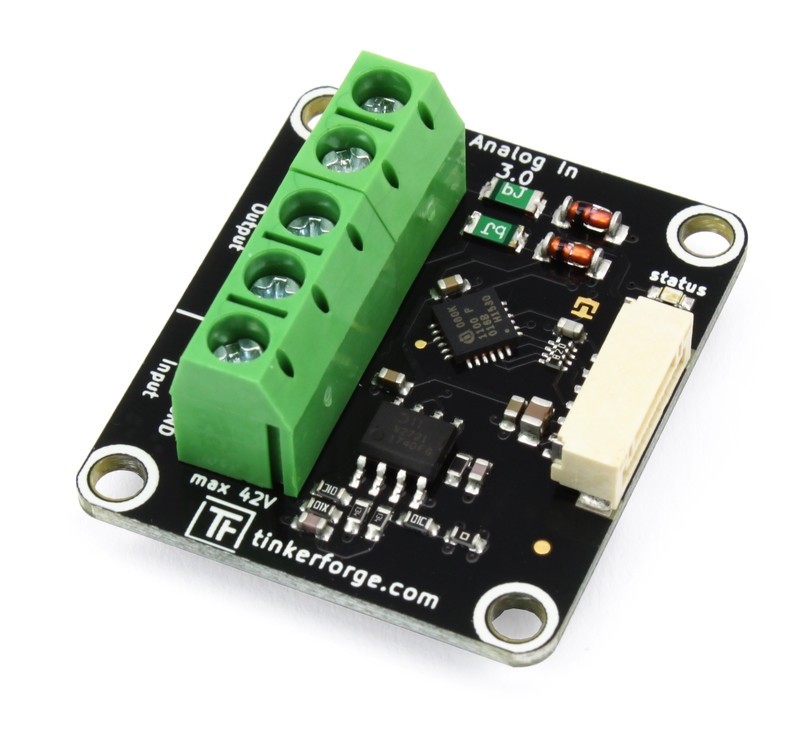

The Analog In Bricklet 3.0 can be used to extend the features of Bricks by the capability to measure voltages. It is the successor of the Analog In Bricklet 2.0. The voltage can be read out in Volt directly without conversions necessary.

With configurable events it is possible to react on changing voltages without polling.

Technical Specifications

PropertyValue
Current Consumption 70mW (14mA at 5V)

Voltage 0V - 42V (DC) in 1mV steps, 12bit resolution (~10mV)
Maximum Output Current 150mA (3.3V), 150mA (5V)

Dimensions (W x D x H) 35 x 30 x 14mm (1.38 x 1.18 x 0.55")
Weight 8g
