Energy Monitor Bricklet

Energy Monitor Bricklet

More Views

Energy Monitor Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Enables energy monitoring of mains voltage (120V/230V AC)
  • Measures voltage (V), current (A) and energy (Wh)
  • Measures real/apparent/reactive power (W/VA/VAR)
  • Measures power factor and frequency (Hz)

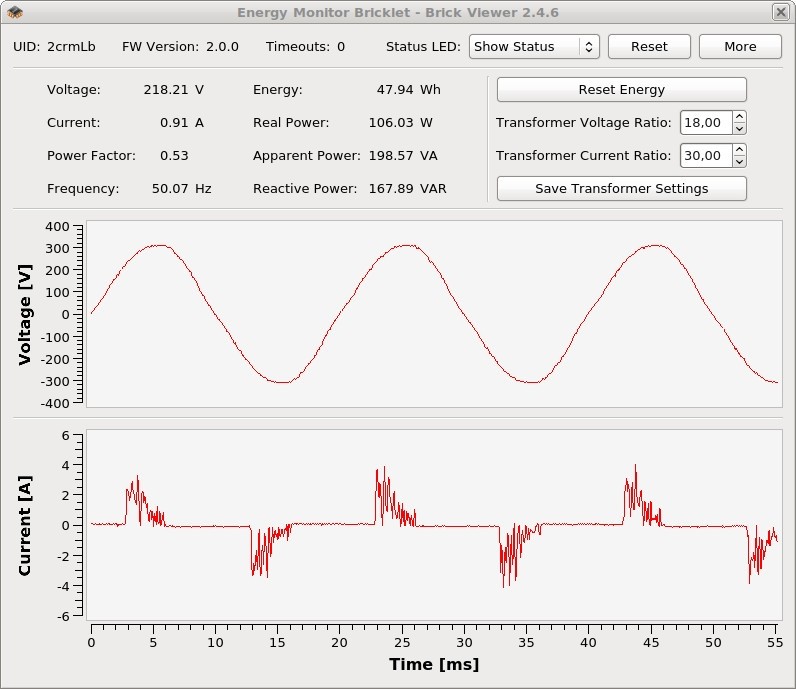

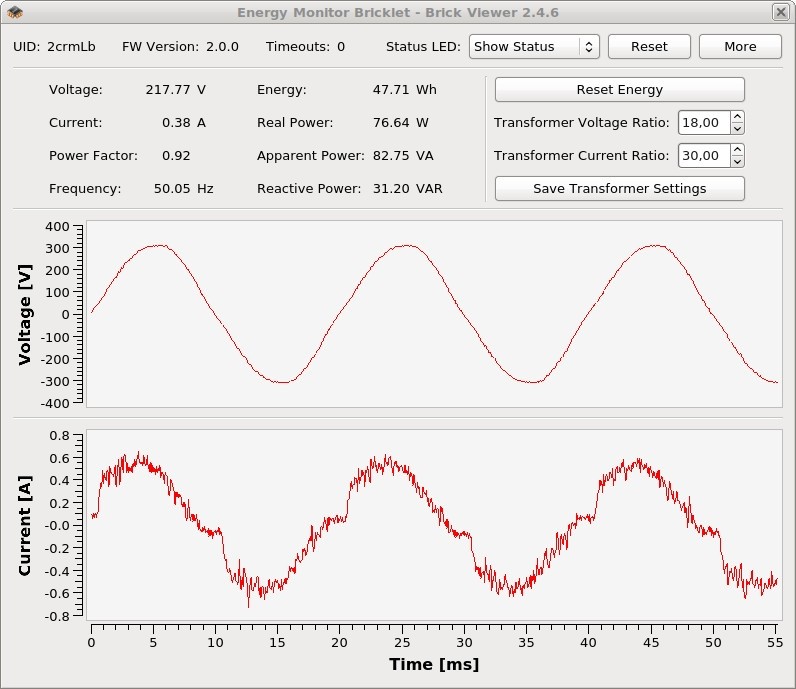

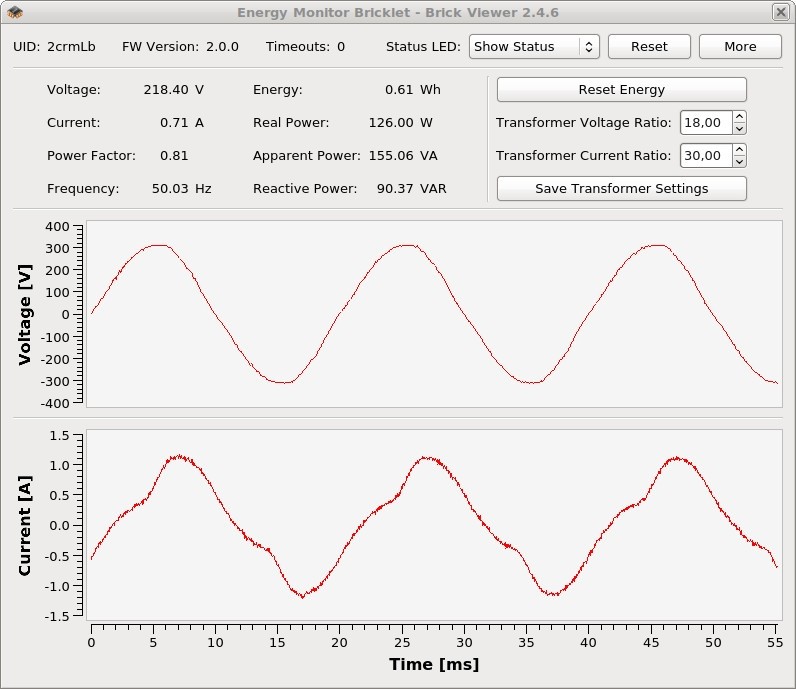

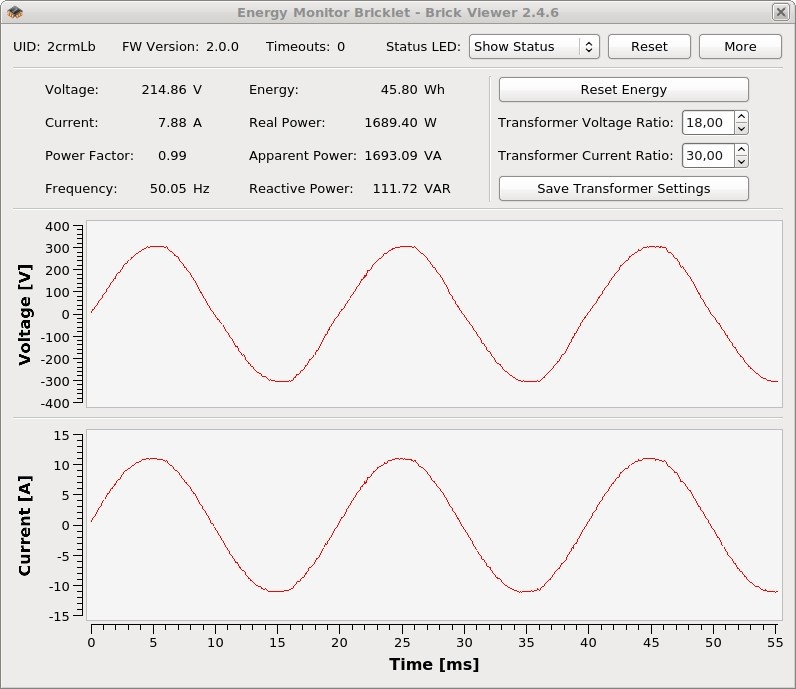

  • Voltage and current waveform are provided
Energy Monitor Bricklet   +€21.99

* Required Fields

Description

Details

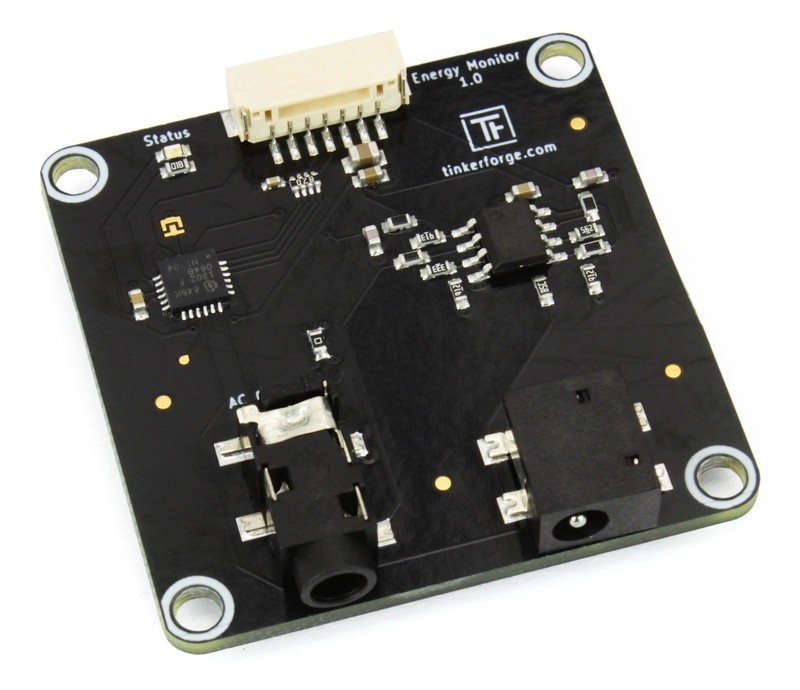

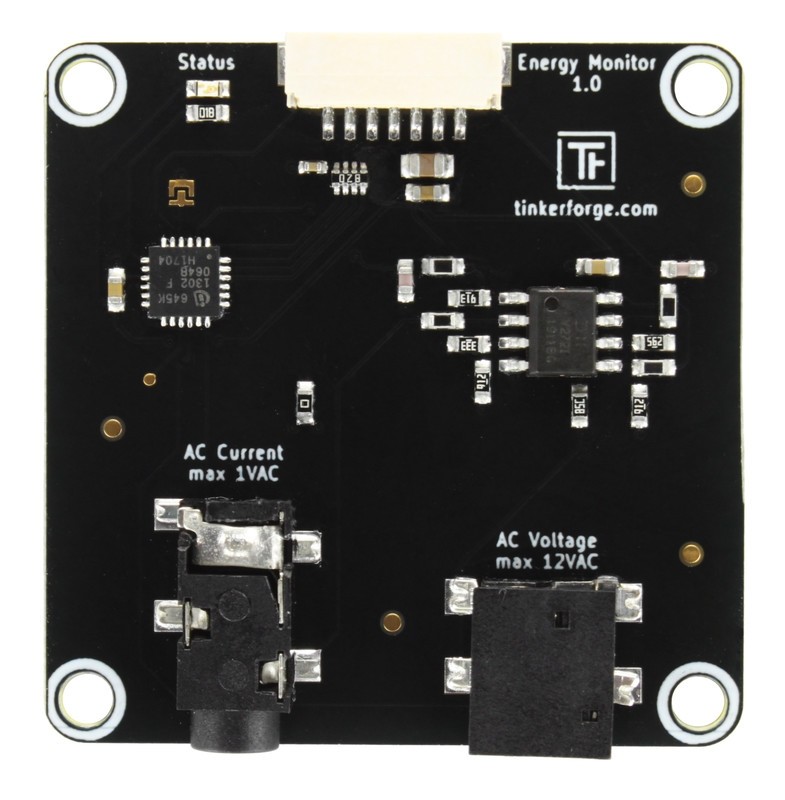

The Energy Monitor Bricklet is equipped with a 3.5mm jack plug for a current transformer and a 3.5mm OD/1.35mm ID barrel plug for a voltage transformer. The transformer voltages are used to calculate voltage, current, energy, real/apparent/reactive power, power factor and frequency of mains voltage of a single phase conductor. Additionally the waveform for voltage and current is provided.

The Energy Monitor Bricklet can do all of the measurements without the need for any exposed mains voltage wiring!

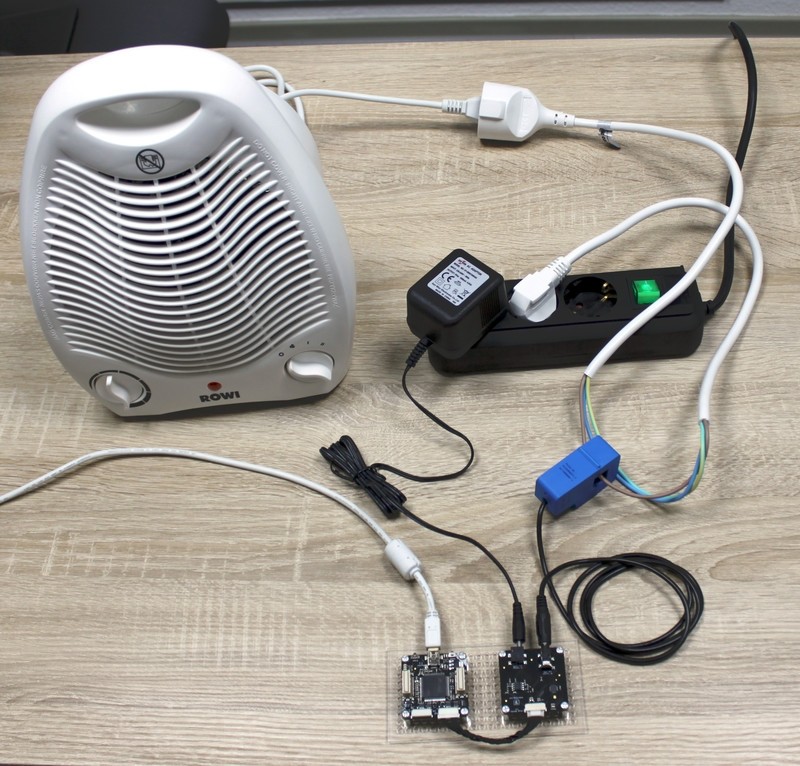

To use the Bricklet you have to connect a current transformer clamp around a single phase conductor and connect an AC voltage transformer to the same power line. The Energy Monitor Bricklet will use the low-level output voltages of the transformers to make the measurements. This ensures that the Bricklet is safe to handle, since no mains voltage has a direct connection to the Bricklet.

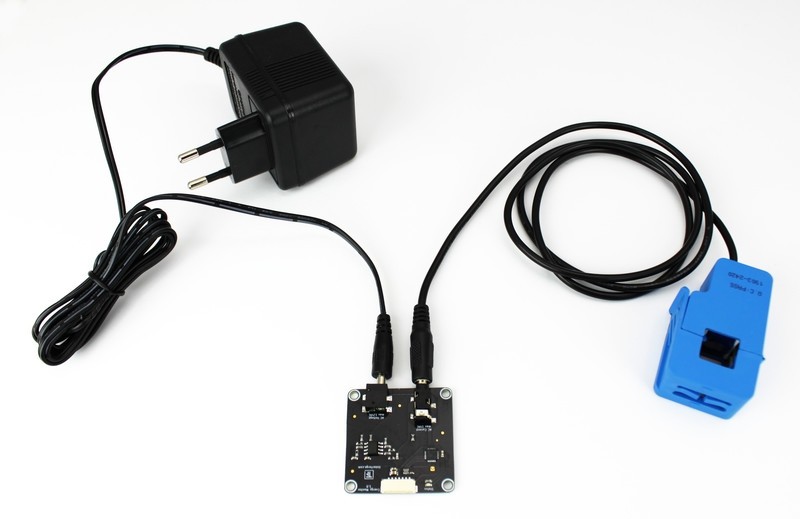

We offer a 230V voltage transformer as well as a 5A current transformer clamp or 30A current transformer clamp. The Bricklet comes factory-calibrated for these transformers.

Technical Specifications

PropertyValue
Current Consumption 50mW (10mA at 5V)

Input Voltage Max 12V AC from voltage transformer
Input Current Max 1V AC from current transformer
Connector Voltage 3.5mm OD with 1.35mm ID barrel plug
Connector Current 3.5mm jack plug (audio jack)

Dimensions (W x D x H) 40 x 40 x 5mm (1.57 x 1.57 x 0.2")
Weight 7g

Comes Packaged With

  • Energy Monitor Bricklet
  • Chosen Bricklet Cable
  • Chosen current transformer clamp
  • Chosen voltage transformer
  • Chosen Mounting Kit / Case
