Industrial Digital Out 4 Bricklet 2.0

Industrial Digital Out 4 Bricklet 2.0

More Views

Industrial Digital Out 4 Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • 4 channel digital output
  • Output voltages up to 36V
  • Galvanically isolated
  • Status LED per channel
  • PWM output with frequency up to 40kHz
Industrial Digital Out 4 Bricklet 2.0   +€21.99

* Required Fields

Description

Details

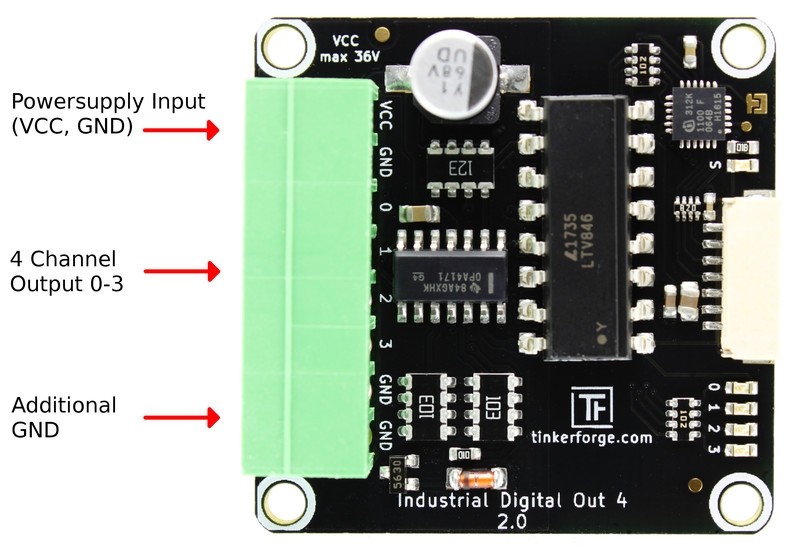

The Industrial Digital Out 4 Bricklet 2.0 can be used to extend Bricks by four galvanically isolated digital outputs. The outputs have to be supplied externally with a voltage of up to 36 Volt. Output isolation permits the usage without a direct electric connection, such that ground loops can be prevented and an additional degree of safety is added.

Typical applications are the interfacing of industrial controllers, such as PLC's or frequency converters, or the usage in environments were electrical ground levels can not be connected.

Technical Specifications

PropertyValue
Current Consumption 30mW (6mA at 5V)

External Voltage Supply Up to 36V
Output Type Four operational amplifier outputs
Maximum Output Current 25mA (per output pin)
Isolation 5000Vrms (optocoupler value)

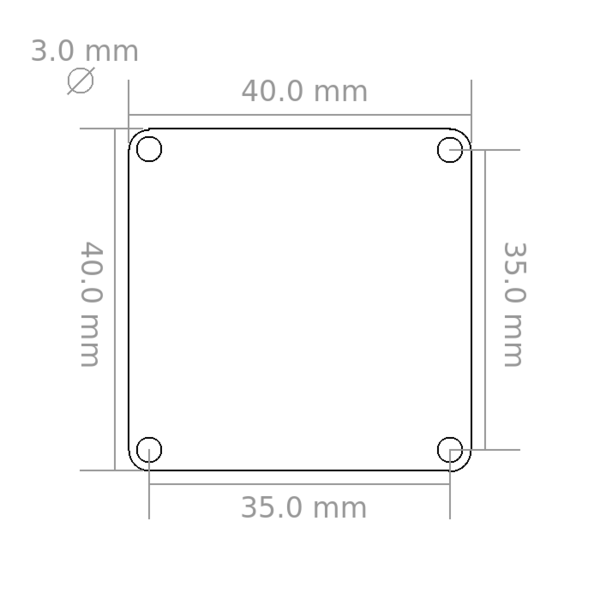

Dimensions (W x D x H) 40 x 40 x 14mm (1.57 x 1.57 x 0.55")
Weight 10g

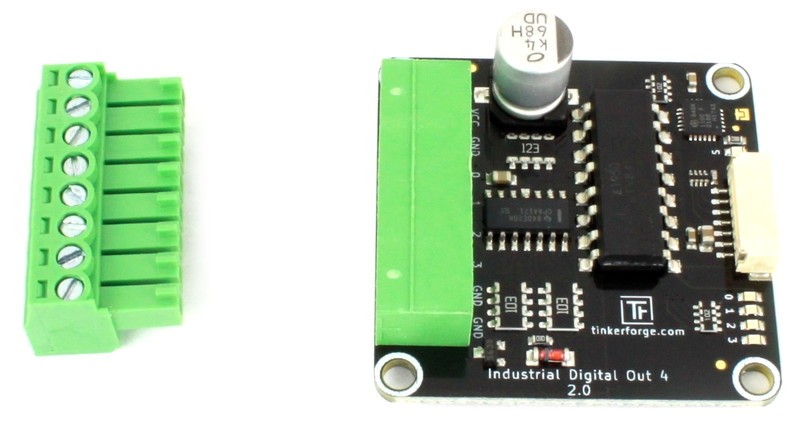

Comes Packaged With
