Generates a configurable voltage between 0V and 12V*
Specification in 1mV steps (12bit resolution)

Bricklet*: Analog Out Bricklet 3.0 +€16.99
Qty:
Bricklet Cable 7p-7p
for Master Brick 3.1, HAT (Zero) Brick and Isolator Bricklet [help?]: Qty:
Mounting Kit / Case: Qty:

* Required Fields

Qty:

Description

Details

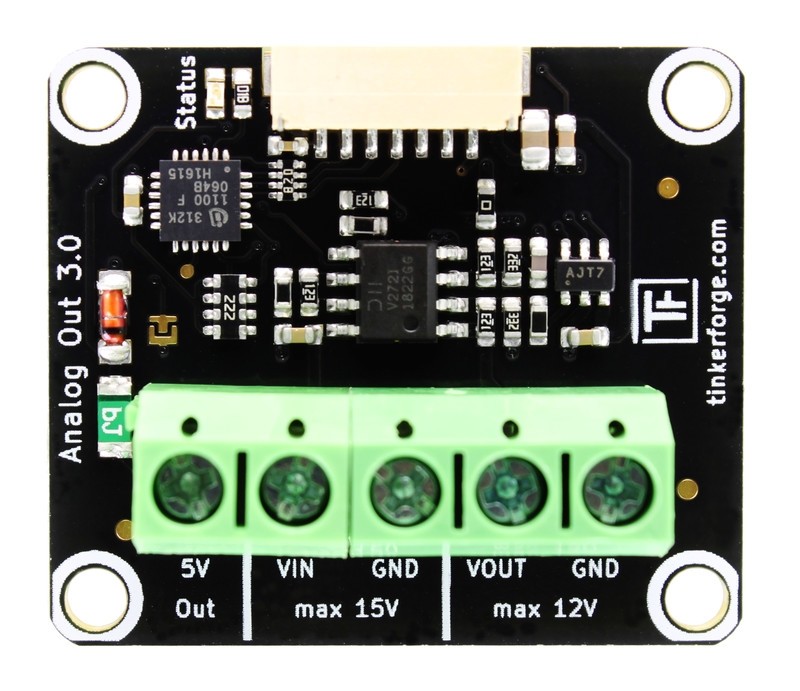

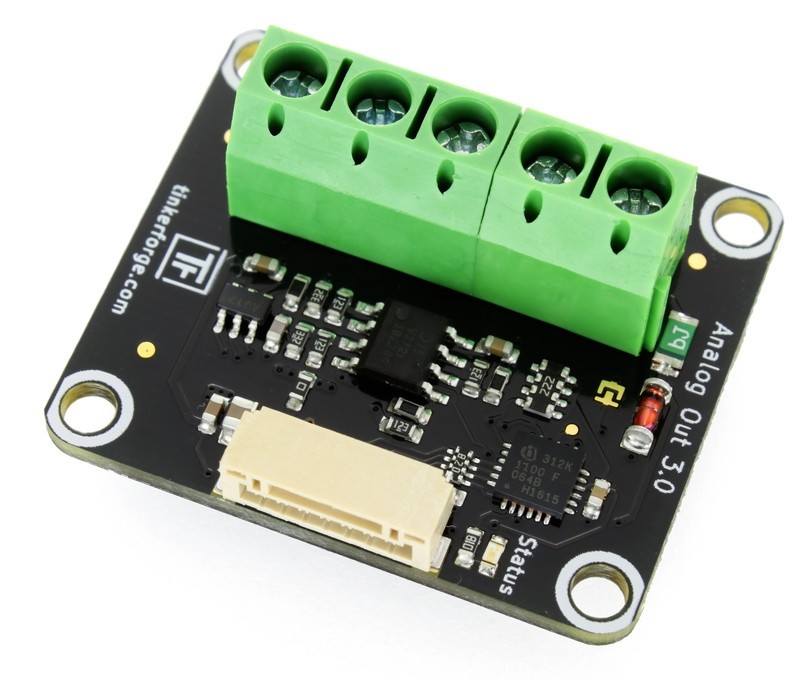

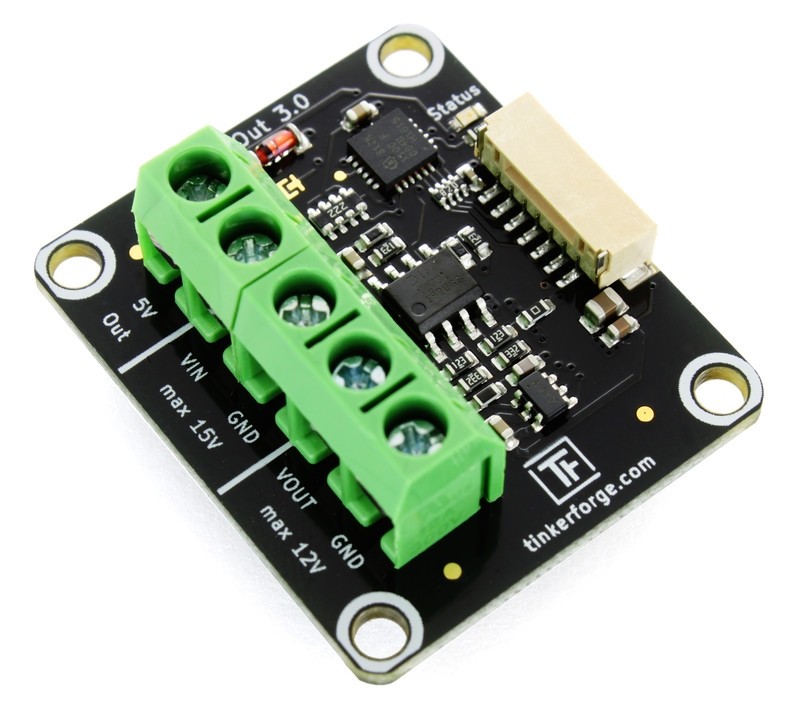

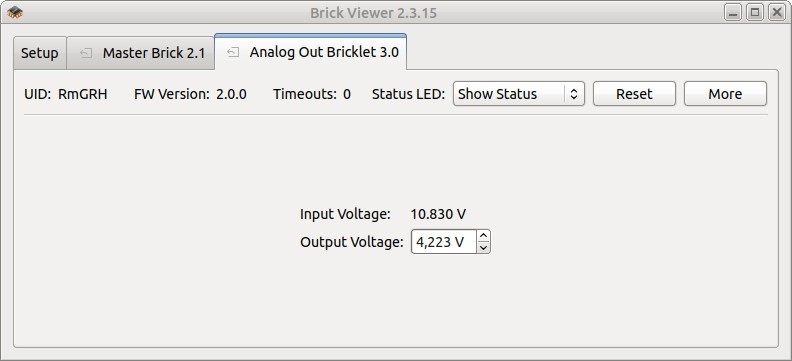

The Analog Out Bricklet 3.0 can be used to extend the features of Bricks by the capability to generate voltages between 0V and 12V*. It is the second successor of the Analog Out Bricklet with a bigger output voltage range. The voltage can be configured directly in Volt without any conversion. The device is equipped with a 12bit Digital-to-Analog Converter (DAC).

For output voltages above 5V, it is necessary to add an external supply voltage. The maximum reachable output voltage will be the value of the supply voltage. For example, if you want to reach an output voltage of 12V, you need to connect a supply voltage of at least 12V. For output voltages below 5V, you can connect the 5V and VIN terminals.

This Bricklet ist not galvanically isolated to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. Dependent of the application this can lead to undesired connections, ground loops or short circuits. These problems can be prevented by using the Bricklet together with a Isolator Bricklet.

Technical Specifications

Property	Value
DAC	MCP4725
Current Consumption	50mW (10mA at 5V, without load)

Voltage	0V - 12V* in 1mV steps, 12bit resolution
Maximum Output Current	24mA

Dimensions (W x D x H)	35 x 30 x 14mm (1.38 x 1.18 x 0.55")
Weight	8g
