Linear Poti Bricklet 2.0

More Views

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

59mm linear potentiometer
Outputs position from 0% to 100% in 1% steps

Bricklet*: Linear Poti Bricklet 2.0 +€12.00
Qty:
Bricklet Cable 7p-7p
for Master Brick 3.1, HAT (Zero) Brick and Isolator Bricklet [help?]: Qty:
Mounting Kit / Case: Qty:

* Required Fields

Qty:

Description

Details

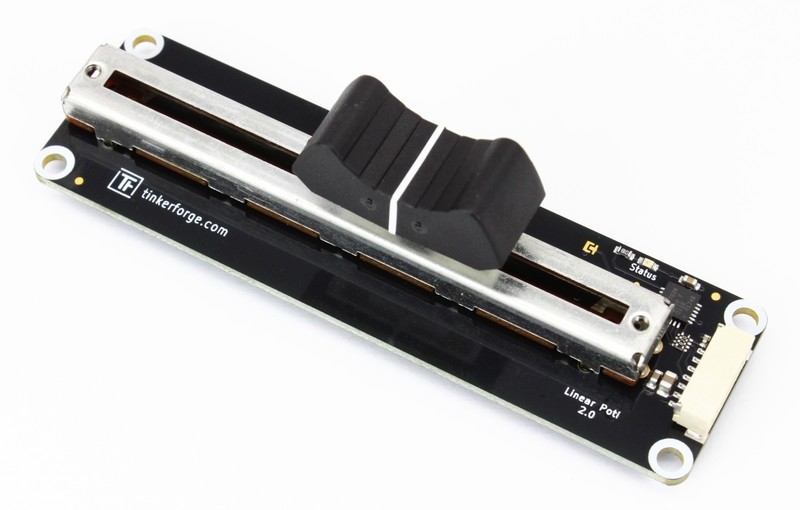

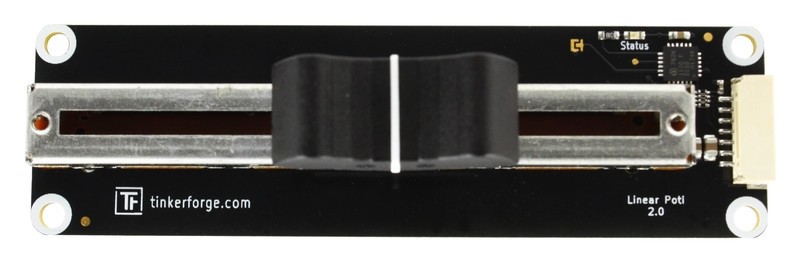

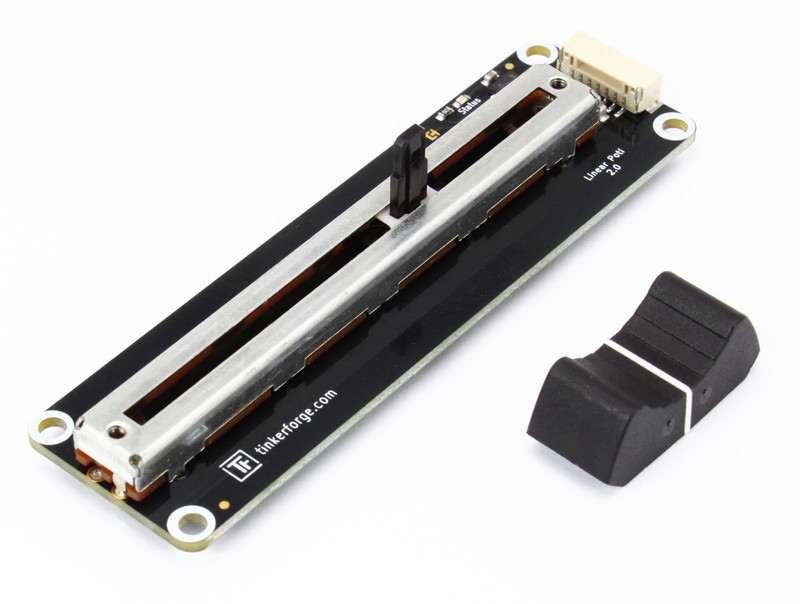

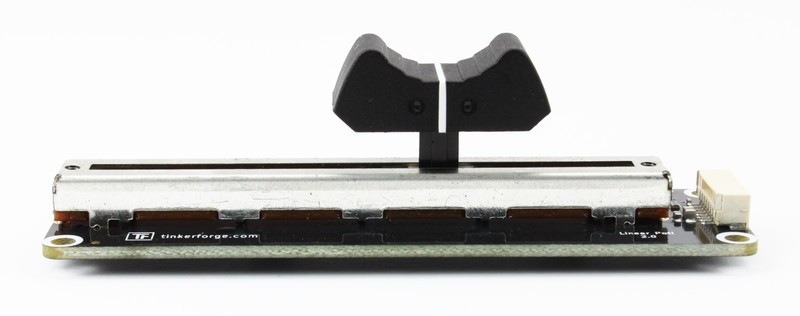

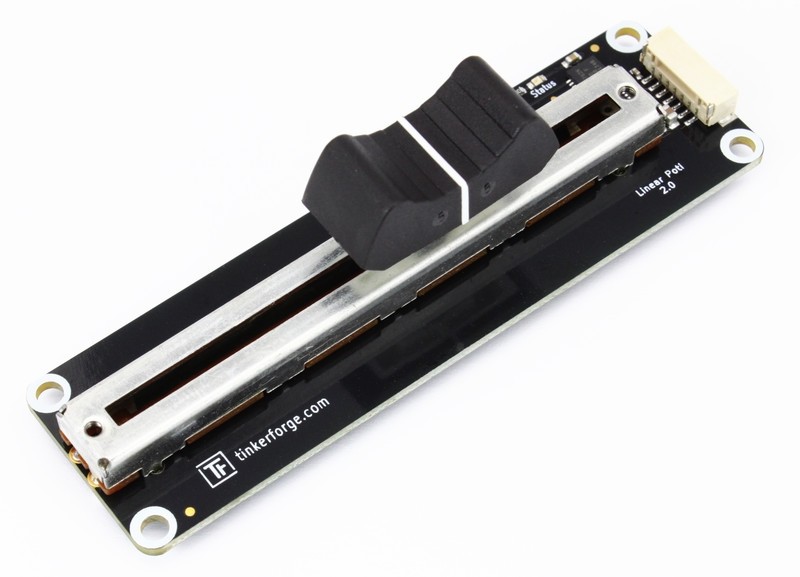

The Linear Poti Bricklet 2.0 is equipped with a linear potentiometer ("fader", "slider"). It can be connected to a Brick, with which the position of the slider can be read out.

With configurable events it is possible to react on changing positions without polling.

Technical Specifications

Property	Value
Linear Potentiometer	59mm (2.32") adjustable length
Current Consumption	42mW (8.4mA at 5V)

Position	0% - 100% (slider down - slider up) in 1% steps

Dimensions (W x D x H)	25 x 85 x 20mm (0.98 x 3.35 x 0.78")*
Weight	14g*
