Multi Touch Bricklet 2.0

Multi Touch Bricklet 2.0

More Views

Multi Touch Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Capacitive touch sensor
  • Can handle up to 12 electrodes used as touch locations
  • Touch can be detected through a thin layer of glass/plastic/paper
  • Size and placement of touch area can be user defined
  • Can be used to build custom touch panels
Multi Touch Bricklet 2.0   +€14.99

* Required Fields

Description

Details

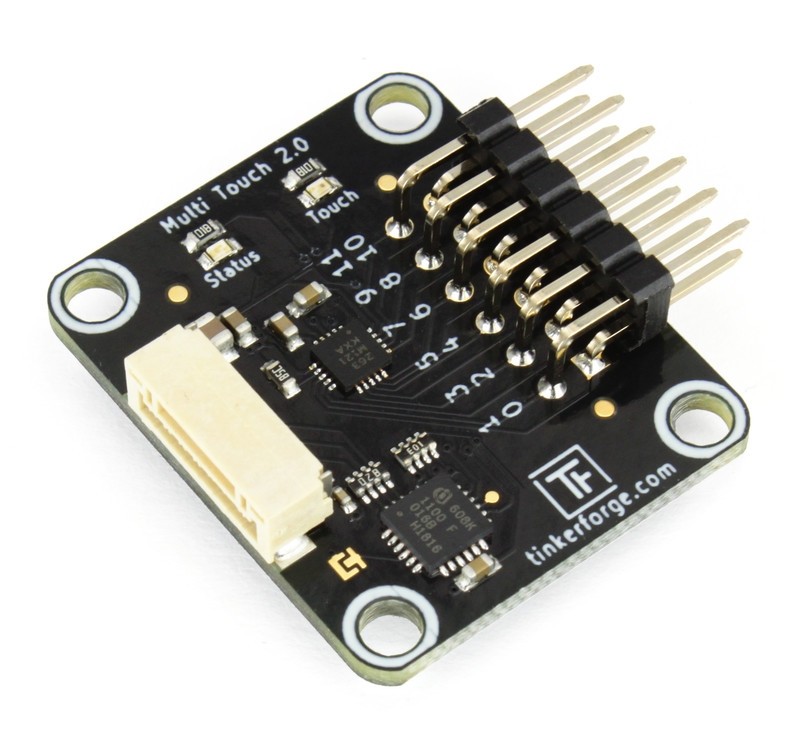

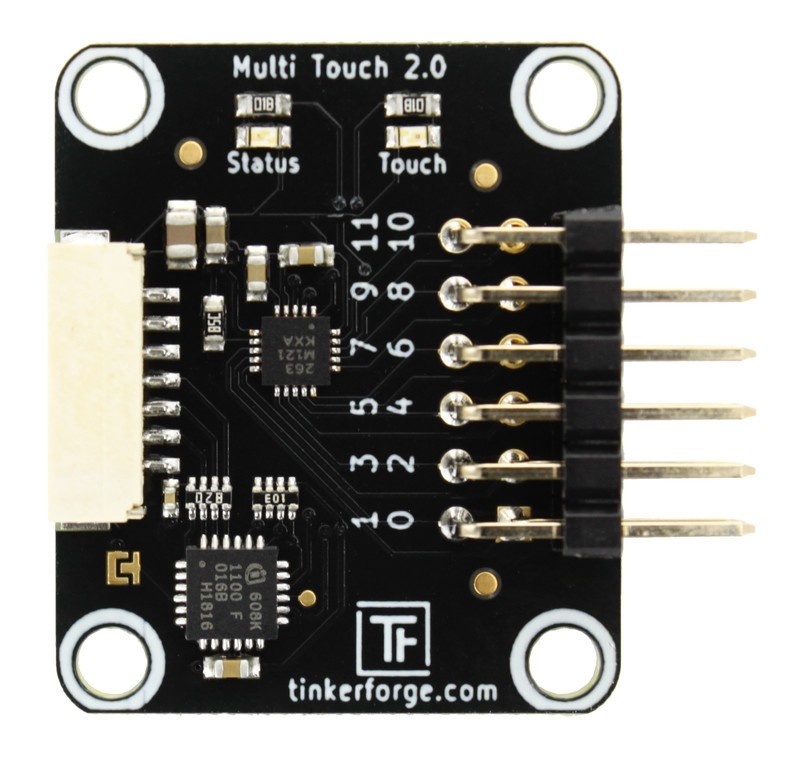

The Multi Touch Bricklet 2.0 is equipped with the MPR121 capacitive touch sensor. It can be used to extend Bricks to sense touch at 12 different locations.

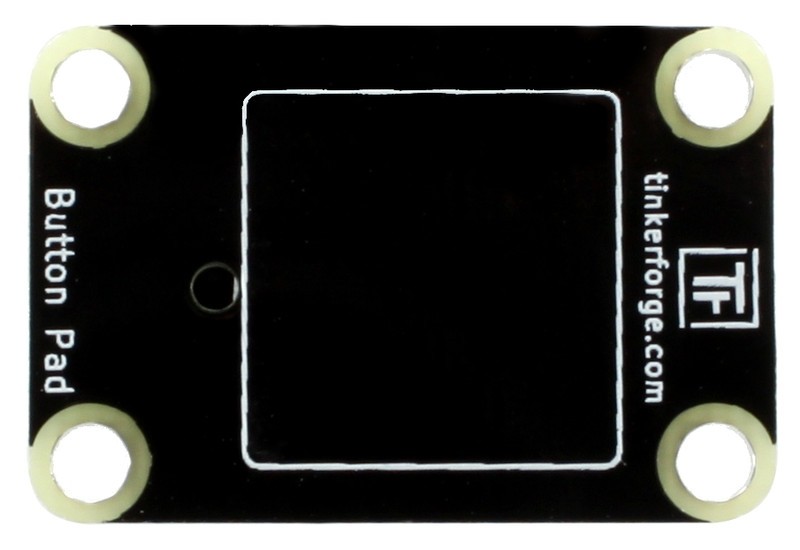

The thing that is actually touched is called an "electrode". The electrode can be a cable, electrically conductive tape or a copper surface of a circuit board. Electrodes can sense touch through a thin layer of glass, plastic, paper or similar.

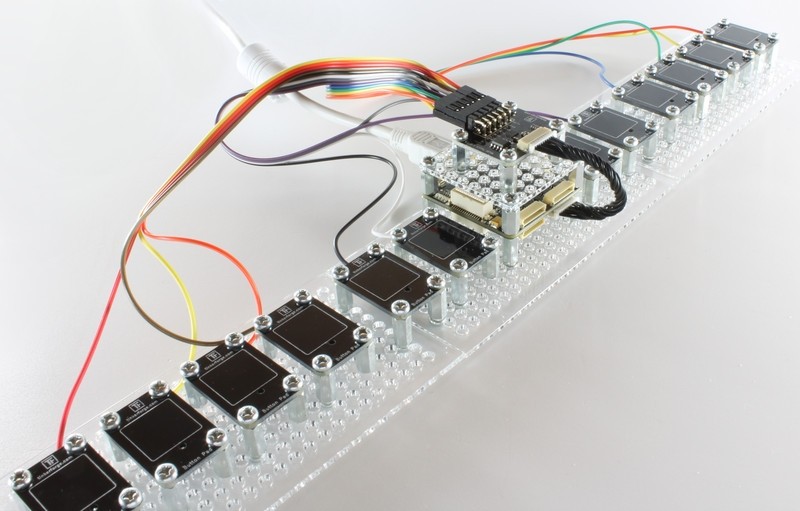

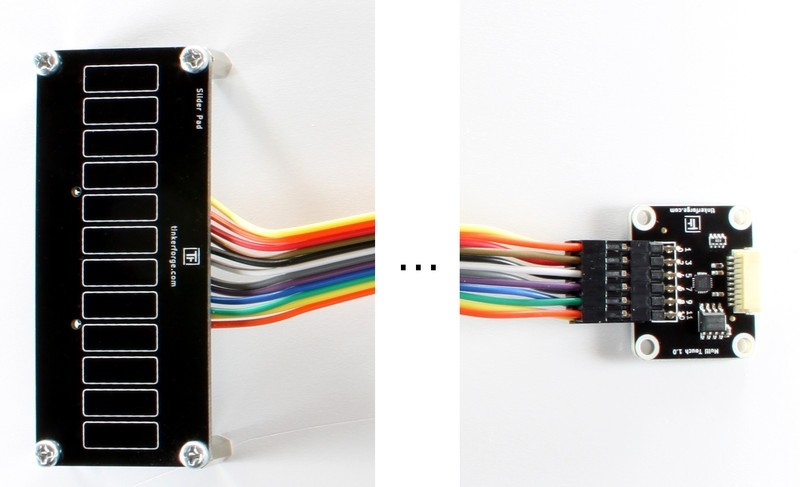

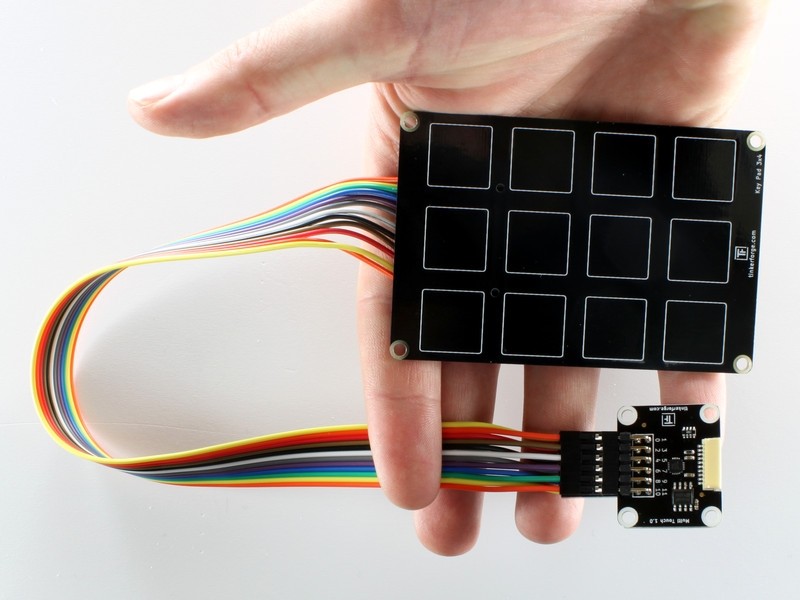

With the Multi Touch Bricklet it is possible to build custom touch panels by gluing a cover onto the electrodes.

Technical Specifications

PropertyValue
Sensor MPR121
Current Consumption 30mW (6mA at 5V)

Number of Electrodes 12 + simulated 13th electrode for proximity

Dimensions (W x D x H) 30 x 25 x 7mm (1.18 x 0.98 x 0.28")
Weight 4g

Comes Packaged With
