Distance IR 4-30cm Bricklet 2.0

Distance IR 4-30cm Bricklet 2.0

More Views

Distance IR 4-30cm Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures distances with IR light
  • Sensor can be changed
  • Supported range: 4-30cm
Distance IR 4-30cm Bricklet 2.0   +€19.99

* Required Fields

Description

Details

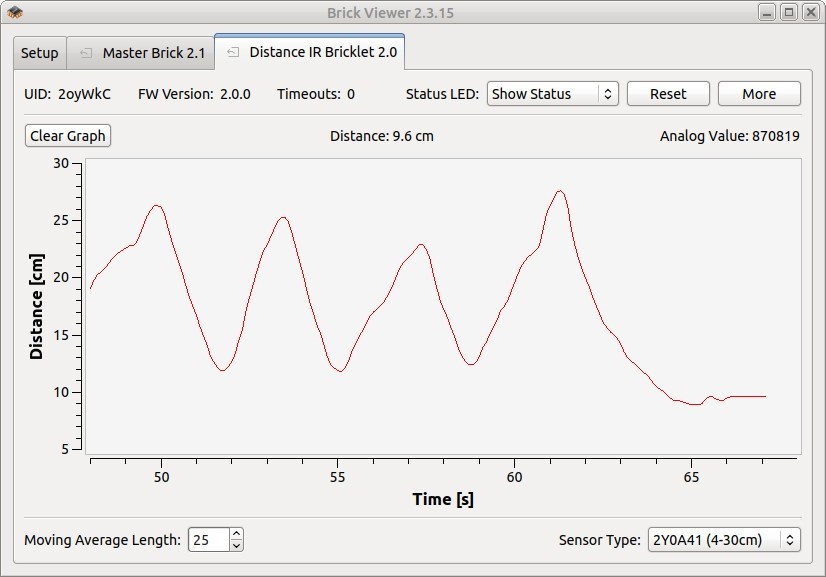

The Distance IR Bricklet 2.0 can be used to extend the features of Bricks by the capability to measure distances. Sharp analog infrared proximity sensors can be attached to the Bricklet. After configuring the attached sensor you can read out the measured distance in millimeters. With configurable events it is possible to react on changing distances without polling.

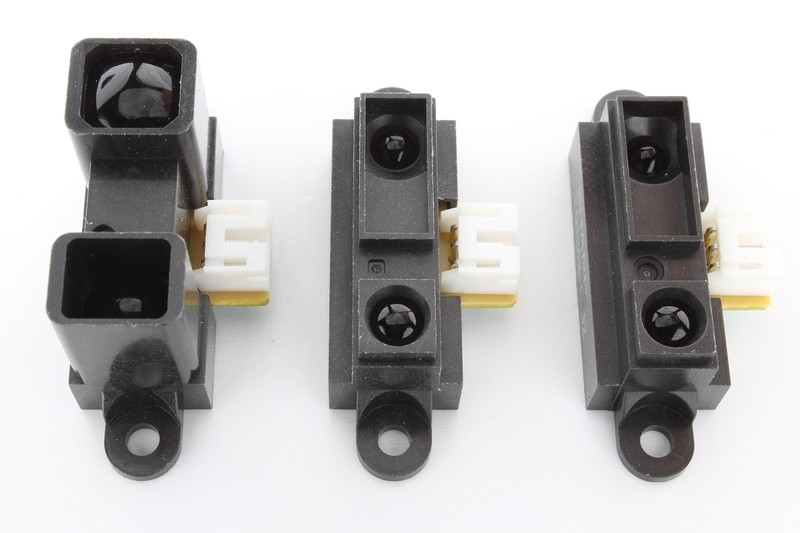

Infrared sensors with different distance ranges are supported and available in the shop:

Typically these types of sensors are used in robotics to measure distances for mapping or localization purposes. But you can also use this sensors in other applications, such as a finding out if a door is opened or closed.

Technical Specifications

PropertyValue
Sensor GP2Y0A41SK0F or GP2Y0A21YK0F or GP2Y0A02YK0F
Current Consumption 110mW (22mA at 5V)

Distance

Depends on attached IR Sensor:

  • GP2Y0A41SK0F: 4cm - 30cm (1.57" - 11.81")
  • GP2Y0A21YK0F: 10cm - 80cm (3.94" - 31.50")
  • GP2Y0A02YK0F: 20cm - 150cm (7.87" - 59.06")

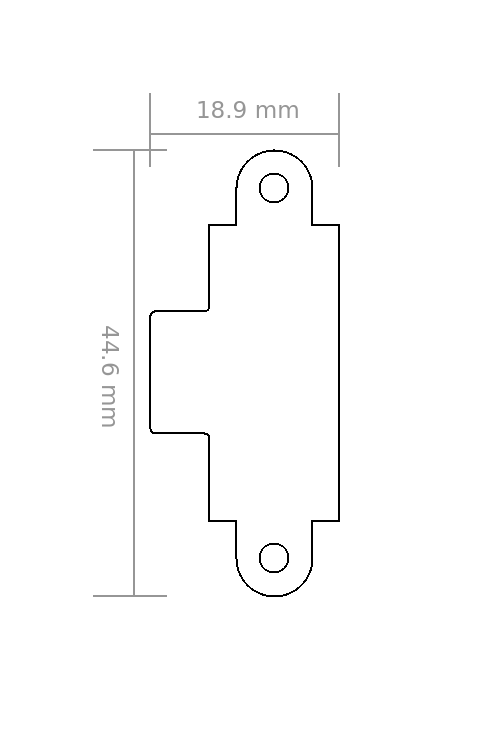

Dimensions (W x D x H) 45 x 13 x 5mm (1.76 x 0.51 x 0.19")*, fits on backside of sensor
Weight 8g

* without cable and sensor

Comes Packaged With

  • Distance IR 4-30cm Bricklet 2.0
  • Chosen Bricklet Cable
  • Chosen Mounting Kit / Case
