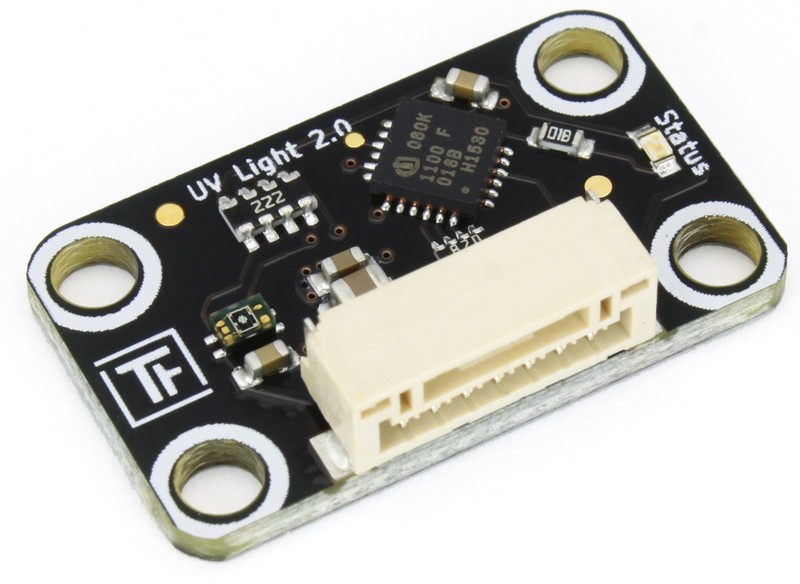

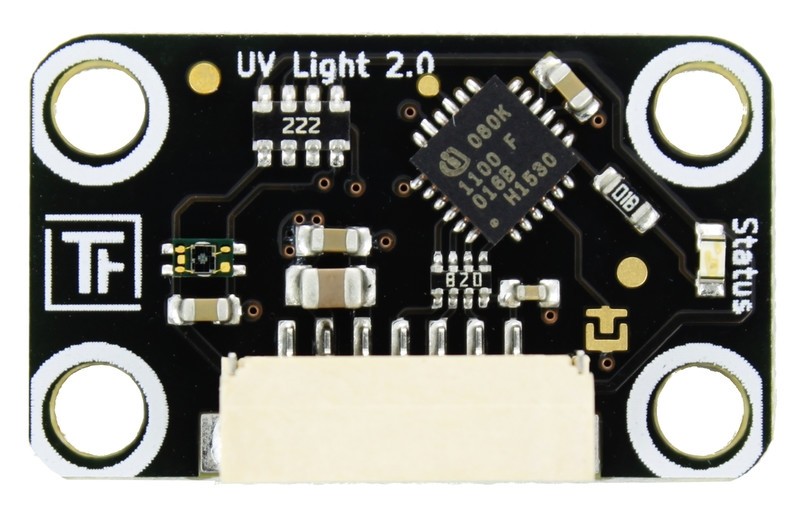

UV Light Bricklet 2.0

UV Light Bricklet 2.0

More Views

UV Light Bricklet 2.0

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

Measures UV-A, UV-B and UV index

UV Light Bricklet 2.0   +€16.99

* Required Fields

Description

Details

The UV Light Bricklet 2.0 measures UV-A as well as UV-B and uses the measurements to calculate the UV index.

With configurable events it is possible to react on changing values without polling.

Typical applications are sunscreen warning and environmental data logging.

Technical Specifications

PropertyValue
Sensor VEML6075
Current Consumption 35mW (7mA at 5V)

UV-A resolution 0.93 µW/cm²
UV-B resolution 2.1 µW/cm²

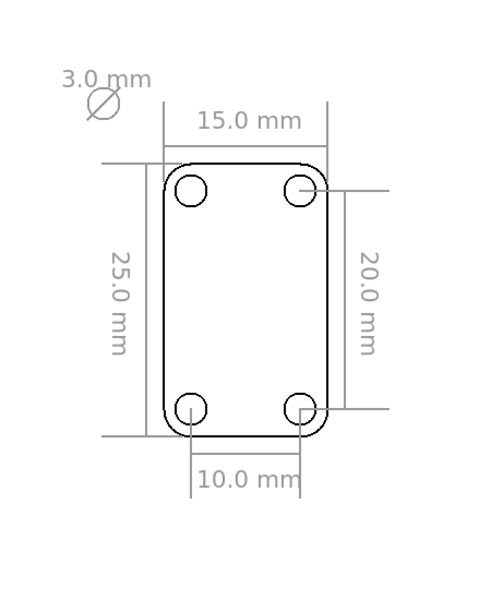

Dimensions (W x D x H) 25 x 15 x 5mm (0.98 x 0.59 x 0.19")
Weight 2.1g

Comes Packaged With
