Stepper Motor with Gearbox 27:1, 3Nm

Stepper Motor with Gearbox 27:1, 3Nm

More Views

Stepper Motor with Gearbox 27:1, 3Nm
€46.99
Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

OR
Description

Details

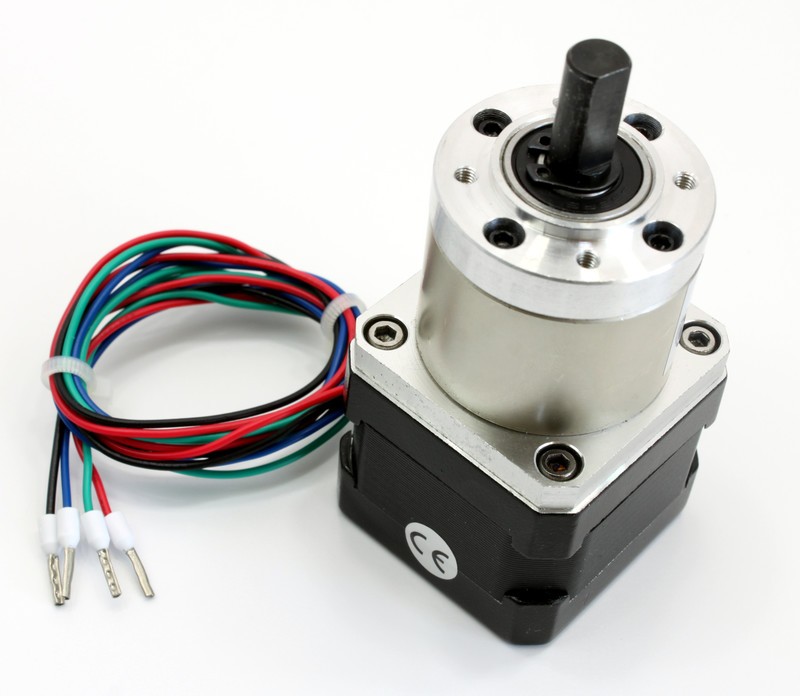

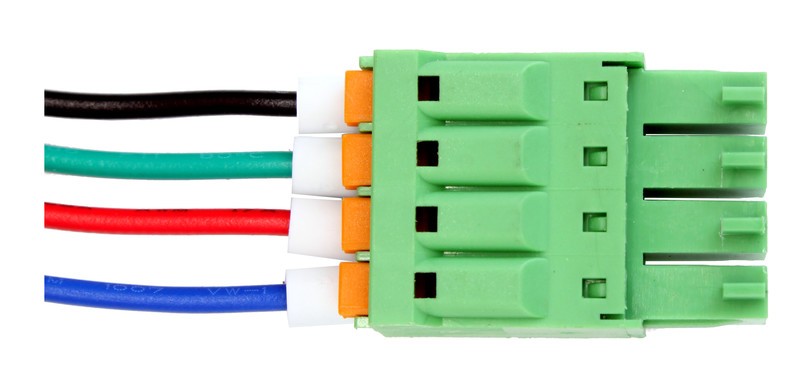

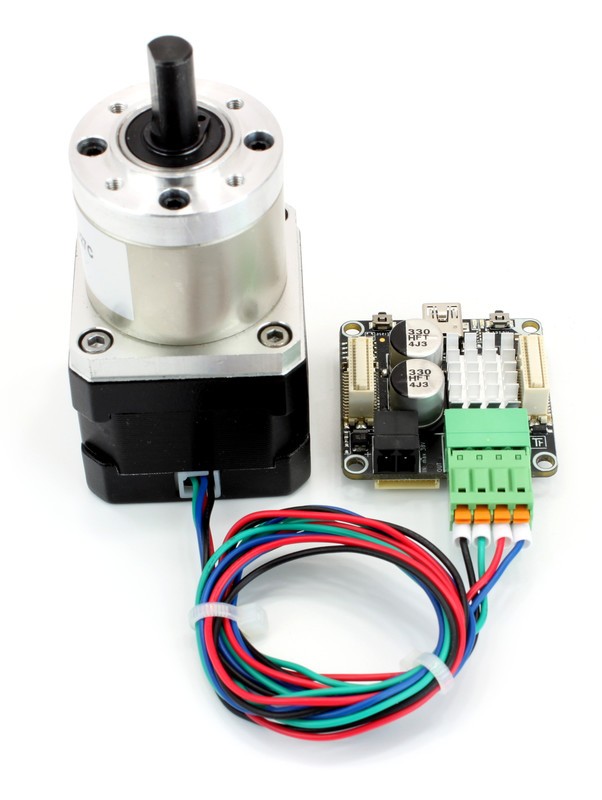

Nema 17 stepper motor with a 27:1 gearbox and 3Nm torque. It can be controlled by the Stepper Brick and Silent Stepper Brick. The cable is included and can be directly connected to the Stepper Brick. The correct way to connect the cable to the Stepper Brick connector can be found in one of the product photos.

The stepper motor is from Osmtec and has the model number 17HS13-0404S-PG27C (Datasheet).

Technical Specifications

Property Value
Torque 3Nm
Step Angle 1.8° (before gearbox)
Voltage 12V
Current 0.4A
Resistance per Phase 30Ω
Inductance per Phase 34mH
Inertia 35gcm²
Type Bipolar
Shaft diameter 8mm
Size 42.3 x 42.3 x 79.3mm
Weight 400g

Comes Packaged With

  • Stepper Motor (wih cable)
