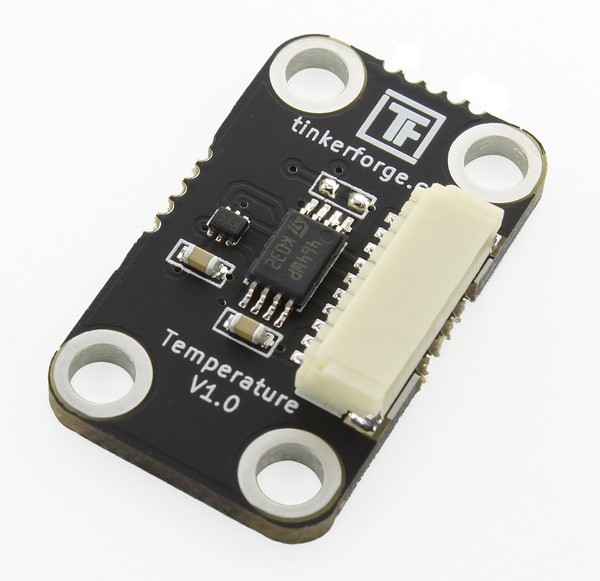

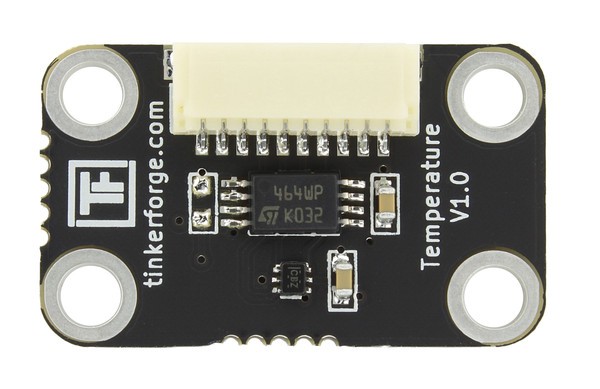

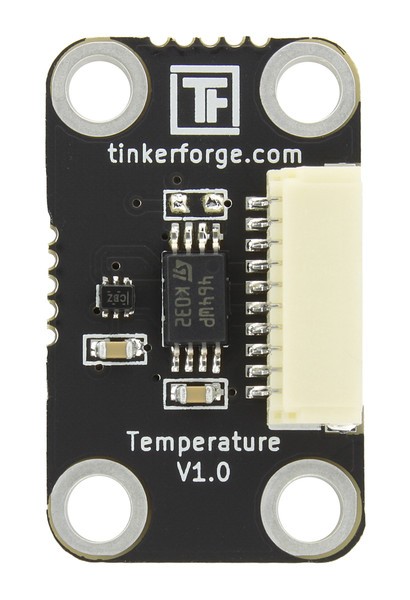

Temperature Bricklet

Temperature Bricklet

More Views

Temperature Bricklet

€0.00

Incl. 19% Tax, excl. Shipping Cost

Availability: In stock

  • Measures ambient temperature with 0.5°C accuracy
  • Temperature range from -40°C to 125°C
  • Output in 0.1°C steps (12bit resolution)

Temperature Bricklet   +€4.99

* Required Fields

Description

Details

This Bricklet is deprecated. Is has been replaced by the Temperature Bricklet 2.0. It is currently sold off with a large discount, but only as long as stock lasts.

The Temperature Bricklet can be used to extend the features of Bricks by the capability to measure temperature. The measured temperature can be read out in °C. With configurable events it is possible to react on changing temperatures without polling.

Technical Specifications

Property Value
Sensor TMP102
Current Consumption 1mA

Ambient Temperature -40°C to 125°C in 0.1°C steps (12bit resolution)
Accuracy 0.5°C

Dimensions (W x D x H) 25 x 15 x 5 mm (0.98 x 0.59 x 0.19”)
Weight 2g

Comes Packaged With
