Breakout Bricklet¶
Note
The Breakout Bricklet is discontinued. We are selling our remaining stock. The XMC1400 Breakout Bricklet is the recommended replacement.
Features¶
- Makes all Bricklet signals available
- Not detected by Bricks
Description¶

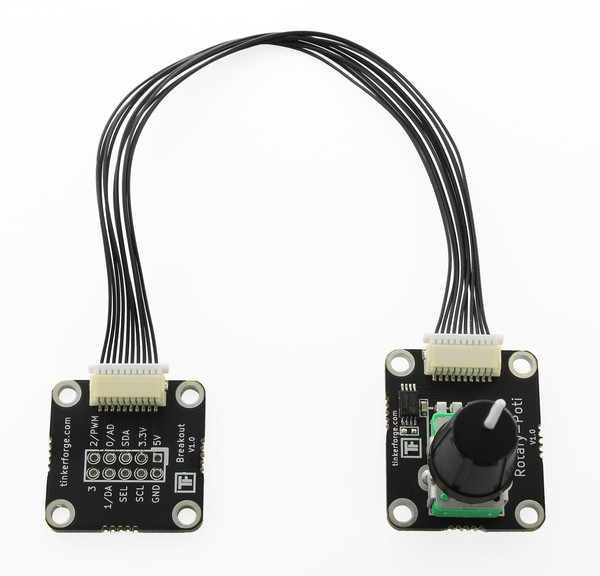

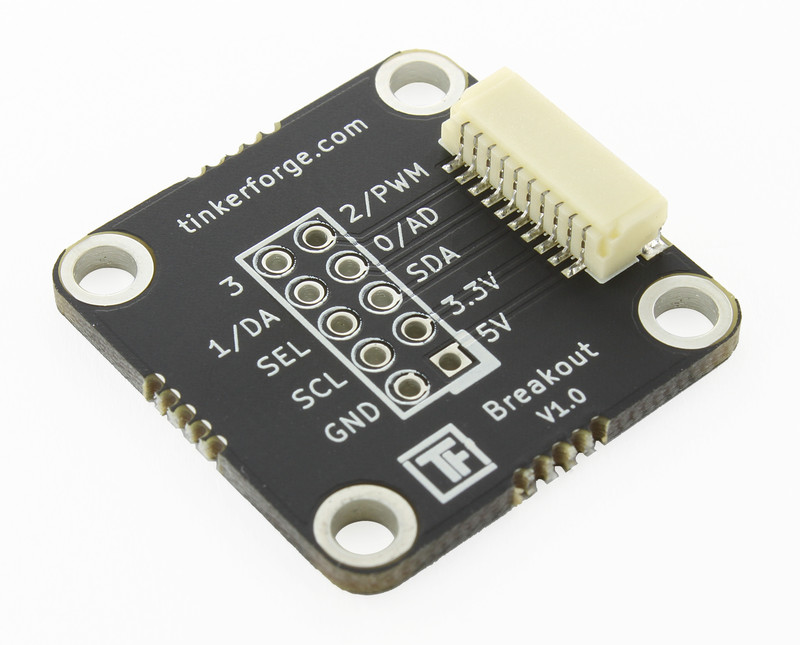

The Breakout Bricklet is a breakout board for Bricklets. It makes all signals of the Bricklet connector available.
This allows the use of Bricklets as breakout boards for the sensor on the Bricklet. For example: If you want to use an ambient light sensor in your embedded project but you don't want to solder the tiny SMD IC, you can buy the Ambient Light Bricklet together with the Breakout Bricklet and solder cables on the big pads of the Breakout Bricklet.

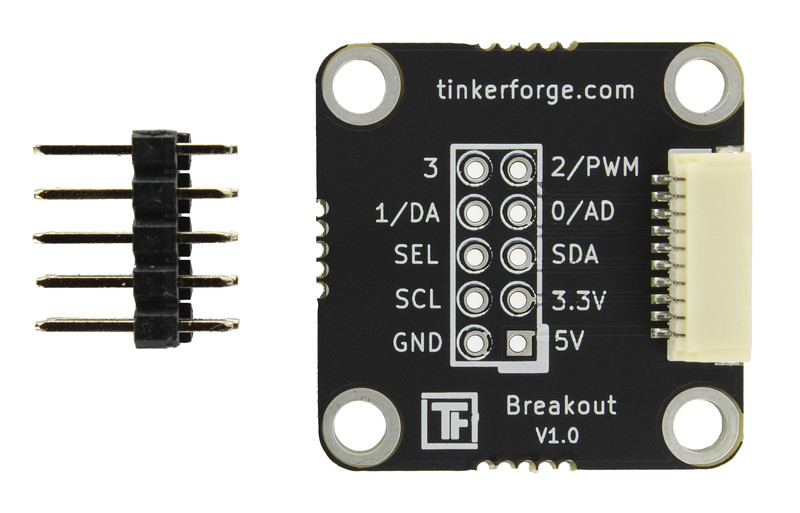

You can also use a standard pin header to make an easy connect and disconnect of the sensor possible.
Note
The Breakout Bricklet is an adapter, it can not be recognized by Bricks. There is no API for the Bricklet available. You have to write your own firmware on the Bricks to use this Bricklet.
Technical Specifications¶
| Property | Value |
|---|---|

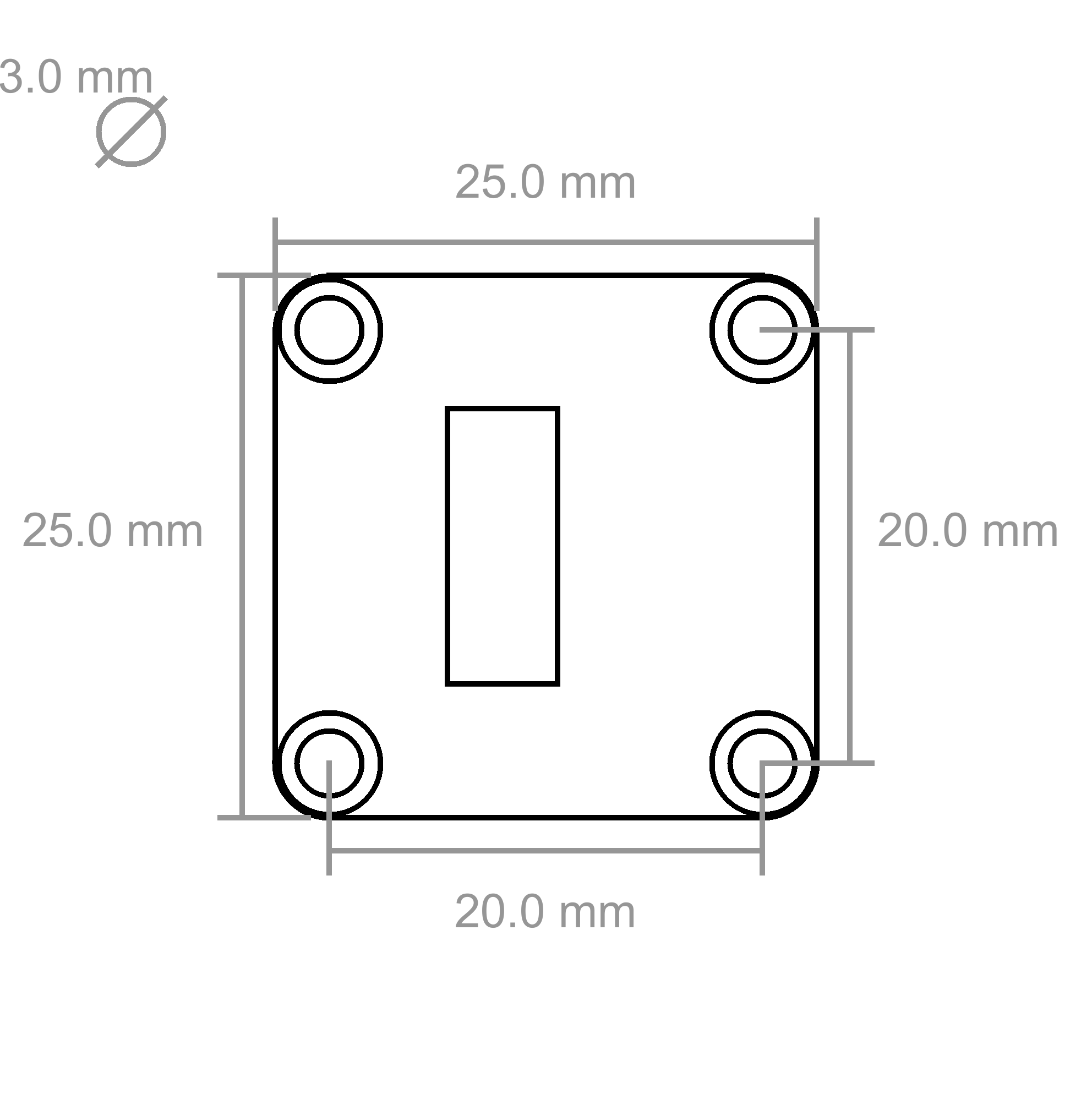

| Dimensions (W x D x H) | 25 x 25 x 5mm (0.98 x 0.98 x 0.19")* |
| Weight | 2g |
* without pin header
