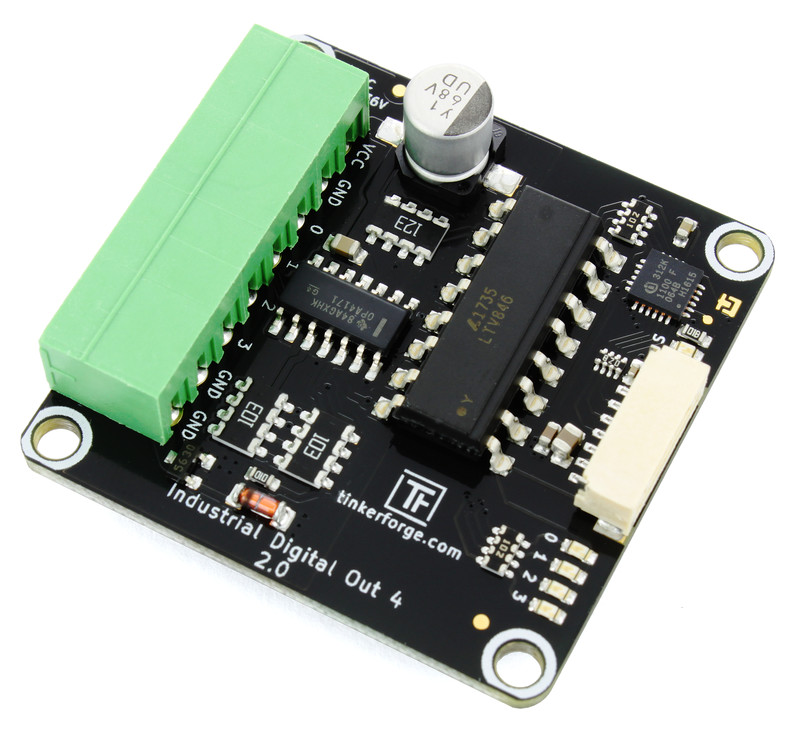

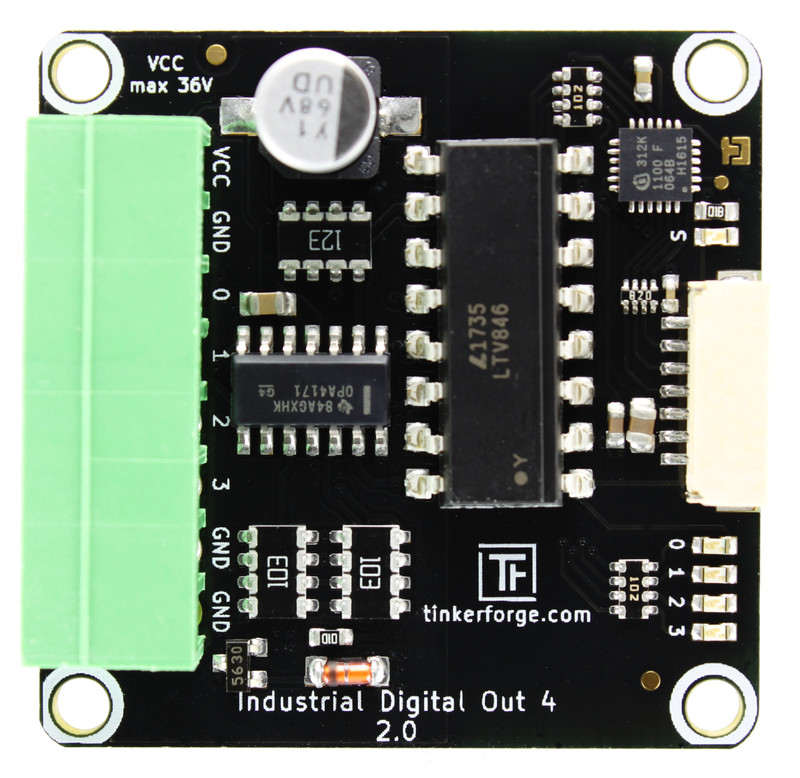

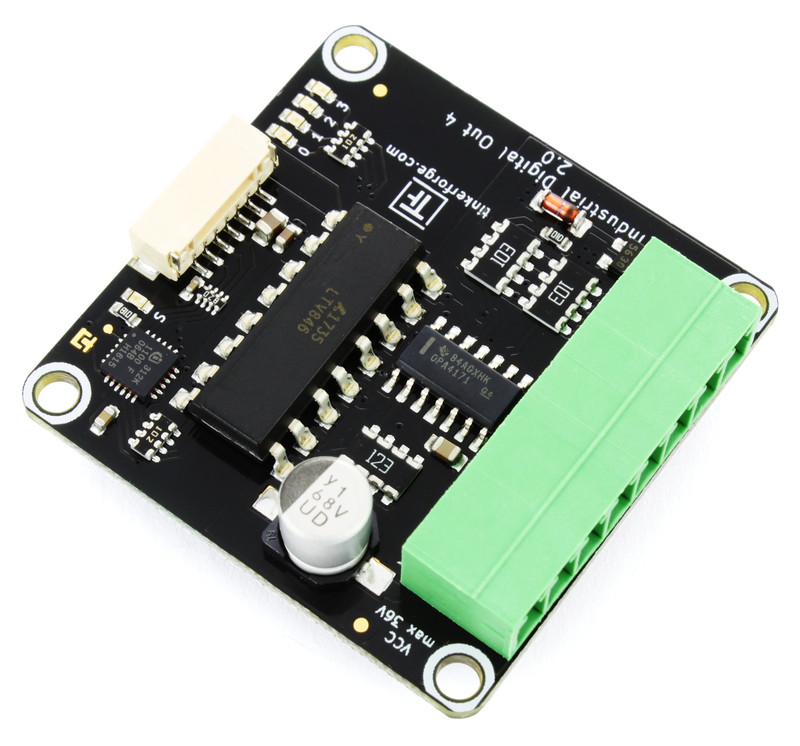

Industrial Digital Out 4 Bricklet 2.0¶

Features¶

• 4 channel digital output
• Output voltages up to 36V
• Galvanically isolated
• Status LED per channel
• PWM output with frequency up to 40kHz

Description¶

The Industrial Digital Out 4 Bricklet 2.0 can be used to extend Bricks by four galvanically isolated digital outputs. The outputs have to be supplied externally with a voltage of up to 36 Volt. Output isolation permits the usage without a direct electric connection, such that ground loops can be prevented and an additional degree of safety is added.

Typical applications are the interfacing of industrial controllers, such as PLC's or frequency converters, or the usage in environments were electrical ground levels can not be connected.

Technical Specifications¶

Resources¶

• Schematic (Download)

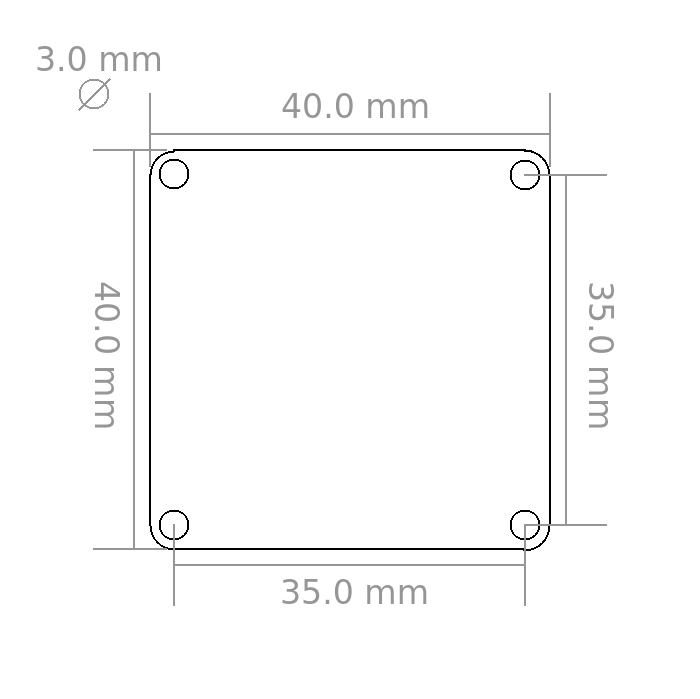

• Outline and drilling plan (Download)
• Source code and design files (Download)
• 3D model (View online | Download: STEP, FreeCAD)

Connectivity¶

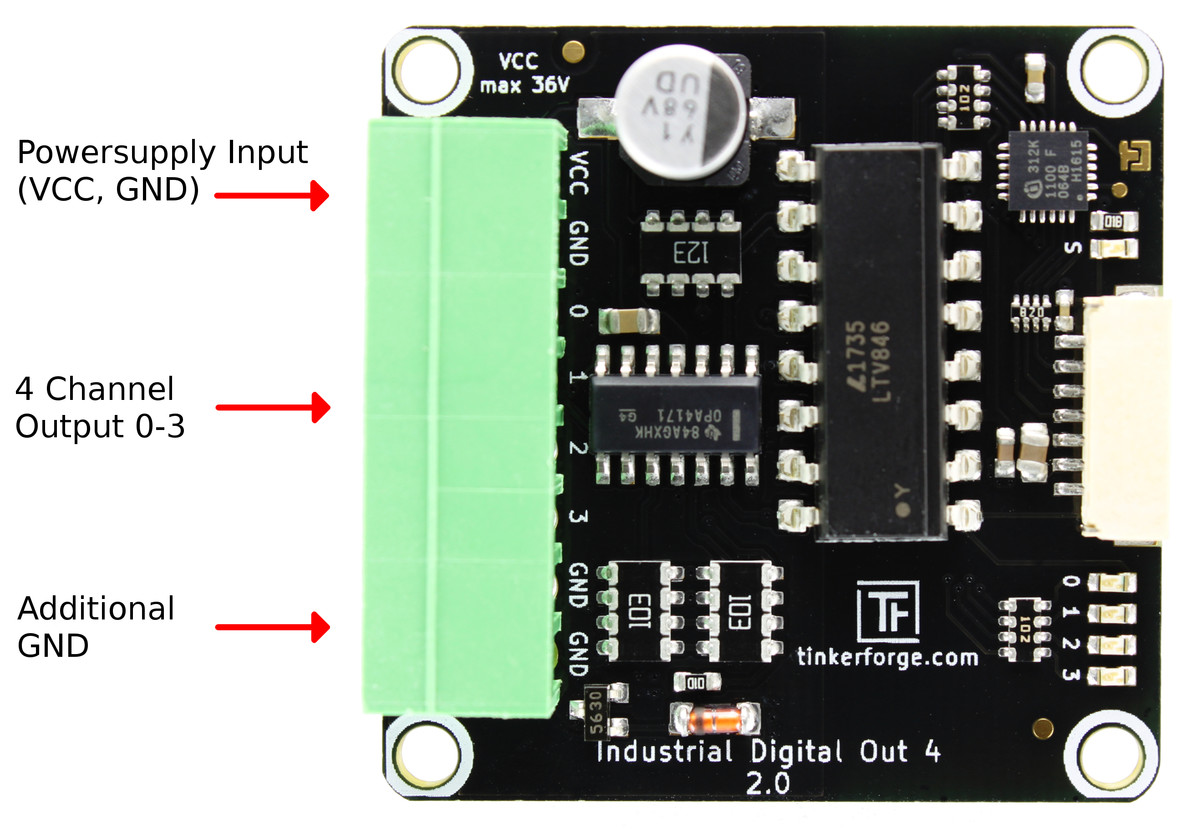

The Industrial Digital Out 4 Bricklet 2.0 has an 8 pole terminal. Please see the picture below for the pinout.

Channel Status LEDs¶

The Bricklet has the standard status LED with four additional LEDs (one for each output).

By default the channel status LEDs are on if the corresponding channel is high and off otherwise. You can also turn each LED individually on/off and show other status information through the API.

Test your Industrial Digital Out 4 Bricklet 2.0¶

To test a Industrial Digital Out 4 Bricklet 2.0 you need to have Brick Daemon and Brick Viewer installed. Brick Daemon acts as a proxy between the USB interface of the Bricks and the API bindings. Brick Viewer connects to Brick Daemon. It helps to figure out basic information about the connected Bricks and Bricklets and allows to test them.

Connect the Industrial Digital Out 4 Bricklet 2.0 to a Brick with a Bricklet Cable. Additionally connect a voltage source to power the Bricklet and a load you want to switch. For testing purposes we have connected a battery and a LED (see picture below).

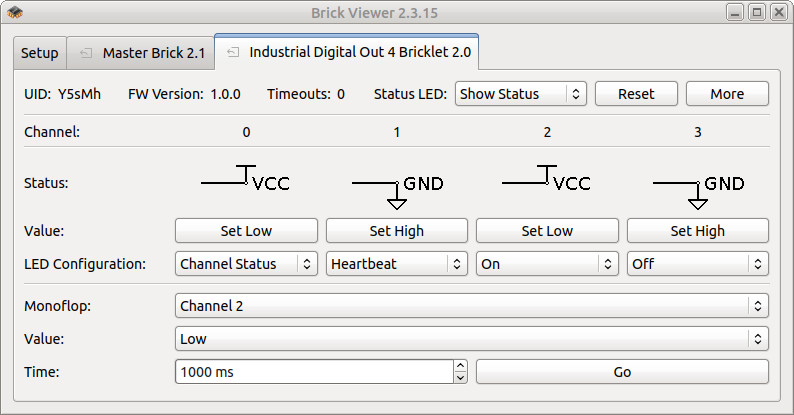

If you connect the Brick to the PC over USB, you should see a new tab named "Industrial Digital Out 4 Bricklet 2.0" in the Brick Viewer after a moment. Select this tab. If everything went as expected you can switch the LED by changing the output state with the Brick Viewer.

After this test you can go on with writing your own application. See the Programming Interface section for the API of the Industrial Digital Out 4 Bricklet 2.0 and examples in different programming languages.

Case¶

A laser-cut case for the Industrial Digital Out 4 Bricklet 2.0 is available.

The assembly is easiest if you follow the following steps:

• Screw spacers to the Bricklet,
• screw bottom plate to bottom spacers,
• build up side plates,
• plug side plates into bottom plate and
• screw top plate to top spacers.

Below you can see an exploded assembly drawing of the Industrial Digital Out 4 Bricklet 2.0 case:

Hint: There is a protective film on both sides of the plates, you have to remove it before assembly.

Programming Interface¶

See Programming Interface for a detailed description.
