ESP32 Power Supply¶
Features¶
- Powers a ESP32 Brick or ESP32 Ethernet Brick with 5V
- Input voltage 7V to 27V DC
Description¶
The ESP32 Power Supply can be used to power ESP32 Brick or a ESP32 Ethernet Brick and its connected Bricklets. The power supply generates 5VDC from an input voltage between 7V and 27V DC.

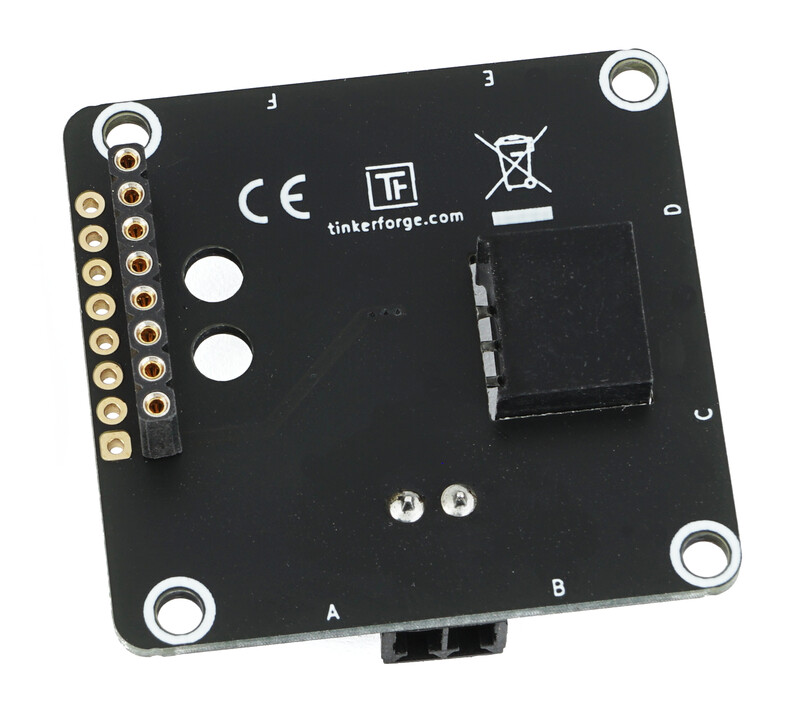

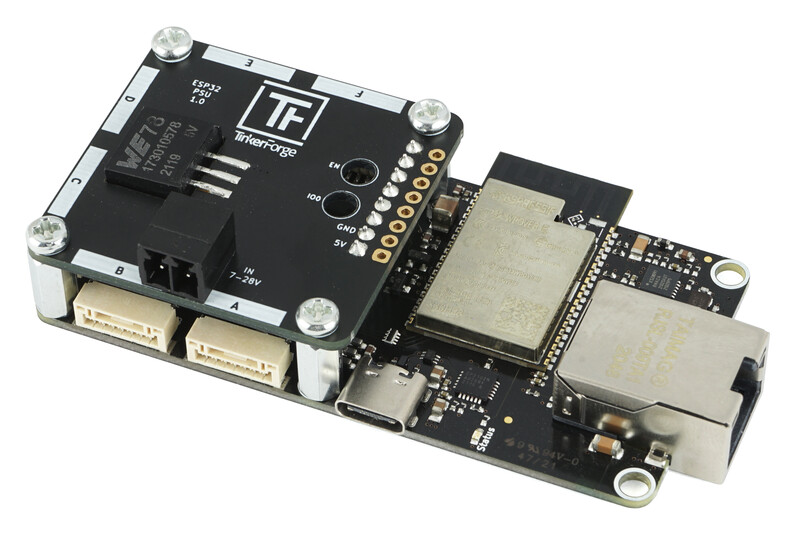

The power supply module is 40 x 40mm in size and can be mounted on top of the Bricklet connectors of the Brick with 10mm standoffs. Electrical connection is established by the GPIO header of the ESP32 (Ethernet) Brick.
Technical Specifications¶
| Property | Value |
|---|---|
| Current Consumption | 20-30mA, depending on Input Voltage |
| Minimum/Maximum Input Voltage | 7V/27V DC |
| Maximum Output Current | 5V Supply: 1A
|
| Dimensions (W x D x H) | 40 x 40 x 11mm (1.57 x 1.57 x 0.43") |
| Weight | 9g |
Resources¶
Connectivity and Mounting¶

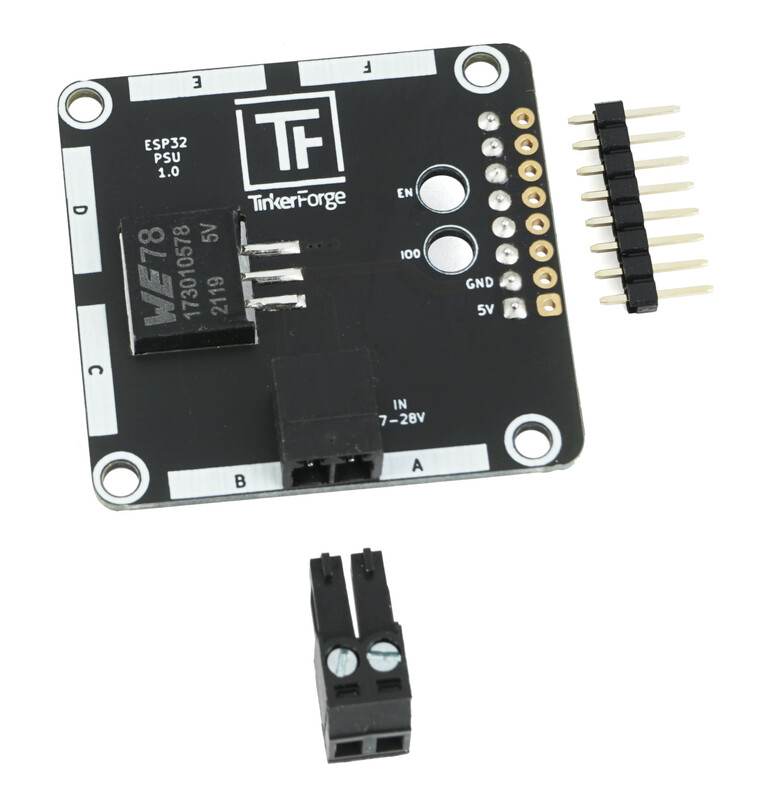

To attach the ESP32 Power Supply to an ESP32 Brick or ESP32 Ethernet Brick you have to solder in the male header for the Brick.

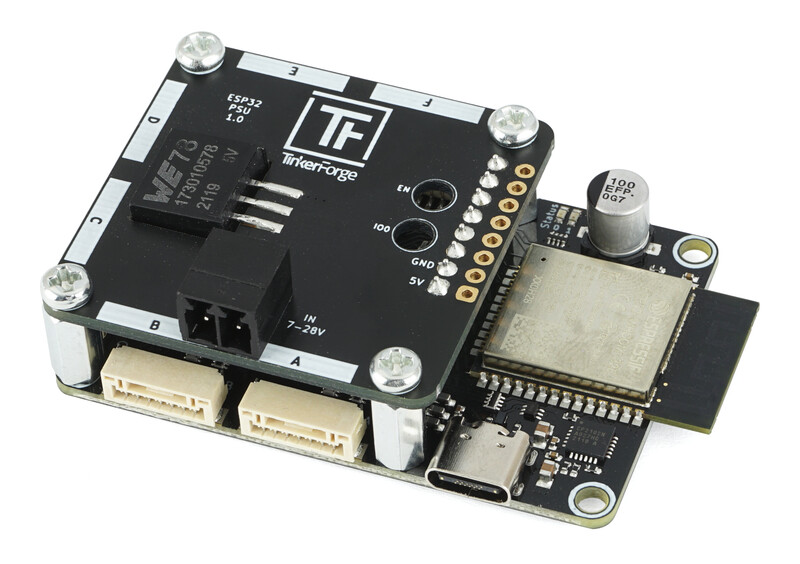

Afterwards the power supply is attached to the Brick with four 10mm standoffs.
