LabVIEW - Dust Detector Bricklet¶

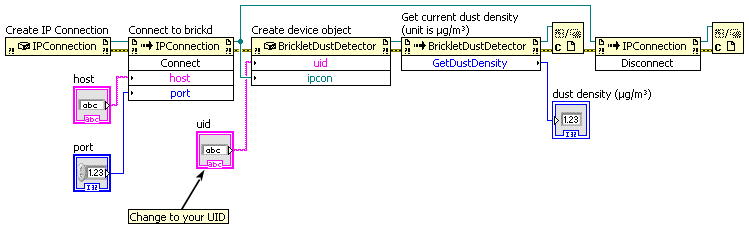

Simple¶

Download (Example Simple.vi)

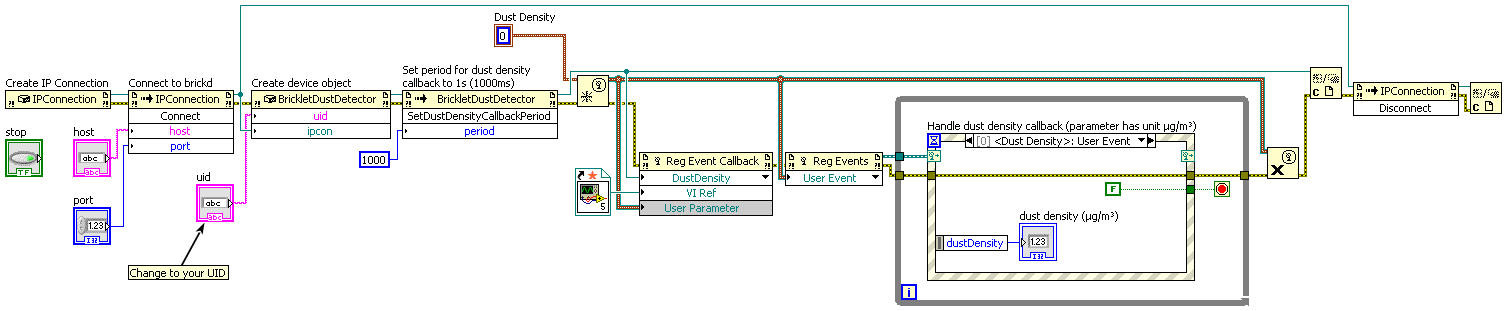

Callback¶

Download (Example Callback.vi), Download (Example Callback - DustDensity Callback.vi)

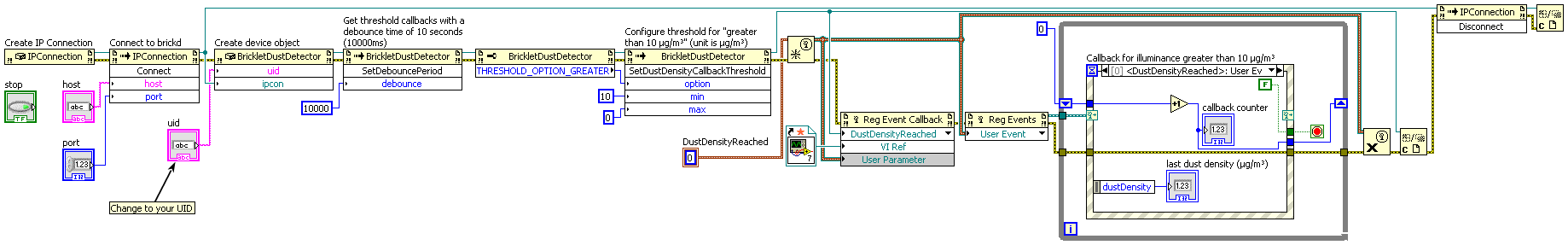

Threshold¶

Download (Example Threshold.vi), Download (Example Threshold - DustDensityReached Callback.vi)

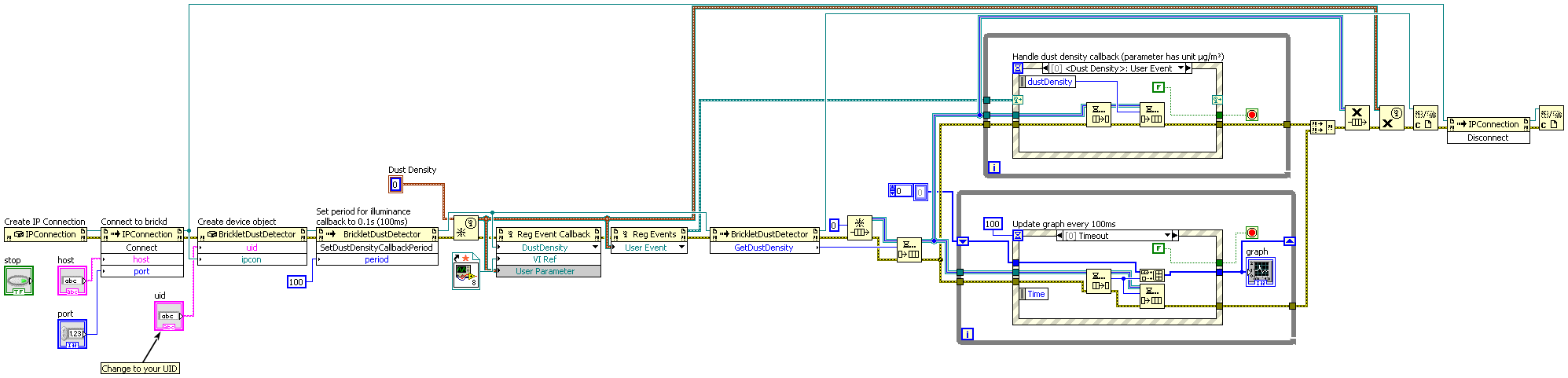

Graph¶

Download (Example Graph.vi), Download (Example Graph - DustDensity Callback.vi)

Basic Functions¶

BrickletDustDetector(uid, ipcon) → dustDetector¶

Input:	uid – Type: String ipcon – Type: .NET Refnum (IPConnection)
Output:	dustDetector – Type: .NET Refnum (BrickletDustDetector)

Creates an object with the unique device ID uid. This object can then be used after the IP Connection is connected.

BrickletDustDetector.GetDustDensity() → dustDensity¶

Output:	dustDensity – Type: Int32, Unit: 1 µg/m³, Range: [0 to 500]

Returns the dust density.

If you want to get the dust density periodically, it is recommended to use the DustDensityCallback callback and set the period with SetDustDensityCallbackPeriod().

Advanced Functions¶

BrickletDustDetector.SetMovingAverage(average)¶

Input:	average – Type: Byte, Range: [0 to 100], Default: 100

Sets the length of a moving averaging for the dust density.

Setting the length to 0 will turn the averaging completely off. With less averaging, there is more noise on the data.

BrickletDustDetector.GetMovingAverage() → average¶

Output:	average – Type: Byte, Range: [0 to 100], Default: 100

Returns the length moving average as set by SetMovingAverage().

BrickletDustDetector.GetIdentity() → uid, connectedUid, position, hardwareVersion, firmwareVersion, deviceIdentifier¶

Output:

uid – Type: String, Length: up to 8 connectedUid – Type: String, Length: up to 8 position – Type: Char, Range: ["a" to "h", "z"] hardwareVersion – Type: Byte[3] 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255] firmwareVersion – Type: Byte[3] 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255] deviceIdentifier – Type: Int32, Range: [0 to 216 - 1]

Returns the UID, the UID where the Bricklet is connected to, the position, the hardware and firmware version as well as the device identifier.

The position can be 'a', 'b', 'c', 'd', 'e', 'f', 'g' or 'h' (Bricklet Port). A Bricklet connected to an Isolator Bricklet is always at position 'z'.

The device identifier numbers can be found here. There is also a constant for the device identifier of this Bricklet.

Callback Configuration Functions¶

BrickletDustDetector.SetDustDensityCallbackPeriod(period)¶

Input:	period – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 0

Sets the period with which the DustDensityCallback callback is triggered periodically. A value of 0 turns the callback off.

The DustDensityCallback callback is only triggered if the dust density has changed since the last triggering.

BrickletDustDetector.GetDustDensityCallbackPeriod() → period¶

Output:	period – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 0

Returns the period as set by SetDustDensityCallbackPeriod().

BrickletDustDetector.SetDustDensityCallbackThreshold(option, min, max)¶

Input:	option – Type: Char, Range: See constants, Default: "x" min – Type: Int32, Unit: 1 µg/m³, Range: [0 to 216 - 1], Default: 0 max – Type: Int32, Unit: 1 µg/m³, Range: [0 to 216 - 1], Default: 0

Sets the thresholds for the DustDensityReachedCallback callback.

The following options are possible:

Option	Description
'x'	Callback is turned off
'o'	Callback is triggered when the dust density value is outside the min and max values
'i'	Callback is triggered when the dust density value is inside the min and max values
'<'	Callback is triggered when the dust density value is smaller than the min value (max is ignored)
'>'	Callback is triggered when the dust density value is greater than the min value (max is ignored)

The following constants are available for this function:

For option:

• BrickletDustDetector.THRESHOLD_OPTION_OFF = "x"
• BrickletDustDetector.THRESHOLD_OPTION_OUTSIDE = "o"
• BrickletDustDetector.THRESHOLD_OPTION_INSIDE = "i"
• BrickletDustDetector.THRESHOLD_OPTION_SMALLER = "<"
• BrickletDustDetector.THRESHOLD_OPTION_GREATER = ">"

BrickletDustDetector.GetDustDensityCallbackThreshold() → option, min, max¶

Output:	option – Type: Char, Range: See constants, Default: "x" min – Type: Int32, Unit: 1 µg/m³, Range: [0 to 216 - 1], Default: 0 max – Type: Int32, Unit: 1 µg/m³, Range: [0 to 216 - 1], Default: 0

Returns the threshold as set by SetDustDensityCallbackThreshold().

The following constants are available for this function:

For option:

• BrickletDustDetector.THRESHOLD_OPTION_OFF = "x"
• BrickletDustDetector.THRESHOLD_OPTION_OUTSIDE = "o"
• BrickletDustDetector.THRESHOLD_OPTION_INSIDE = "i"
• BrickletDustDetector.THRESHOLD_OPTION_SMALLER = "<"
• BrickletDustDetector.THRESHOLD_OPTION_GREATER = ">"

BrickletDustDetector.SetDebouncePeriod(debounce)¶

Input:	debounce – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 100

Sets the period with which the threshold callback

• DustDensityReachedCallback

is triggered, if the threshold

• SetDustDensityCallbackThreshold()

keeps being reached.

BrickletDustDetector.GetDebouncePeriod() → debounce¶

Output:	debounce – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 100

Returns the debounce period as set by SetDebouncePeriod().

Callbacks¶

Callbacks can be registered to receive time critical or recurring data from the device. The registration is done by assigning a function to a callback property of the device object. The available callback property and their type of parameters are described below.

event BrickletDustDetector.DustDensityCallback → sender, dustDensity¶

Callback Output:	sender – Type: .NET Refnum (BrickletDustDetector) dustDensity – Type: Int32, Unit: 1 µg/m³, Range: [0 to 500]

This callback is triggered periodically with the period that is set by SetDustDensityCallbackPeriod(). The parameter is the dust density of the sensor.

Der DustDensityCallback callback is only triggered if the dust density value has changed since the last triggering.

event BrickletDustDetector.DustDensityReachedCallback → sender, dustDensity¶

Callback Output:	sender – Type: .NET Refnum (BrickletDustDetector) dustDensity – Type: Int32, Unit: 1 µg/m³, Range: [0 to 500]

This callback is triggered when the threshold as set by SetDustDensityCallbackThreshold() is reached. The parameter is the dust density of the sensor.

If the threshold keeps being reached, the callback is triggered periodically with the period as set by SetDebouncePeriod().

Virtual Functions¶

Virtual functions don't communicate with the device itself, but operate only on the API bindings device object. They can be called without the corresponding IP Connection object being connected.

BrickletDustDetector.GetAPIVersion() → apiVersion¶

Output:	apiVersion – Type: Byte[3] 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255]

Returns the version of the API definition implemented by this API bindings. This is neither the release version of this API bindings nor does it tell you anything about the represented Brick or Bricklet.

BrickletDustDetector.GetResponseExpected(functionId) → responseExpected¶

Input:	functionId – Type: Byte, Range: See constants
Output:	responseExpected – Type: Boolean

Returns the response expected flag for the function specified by the function ID parameter. It is true if the function is expected to send a response, false otherwise.

For getter functions this is enabled by default and cannot be disabled, because those functions will always send a response. For callback configuration functions it is enabled by default too, but can be disabled by SetResponseExpected(). For setter functions it is disabled by default and can be enabled.

Enabling the response expected flag for a setter function allows to detect timeouts and other error conditions calls of this setter as well. The device will then send a response for this purpose. If this flag is disabled for a setter function then no response is sent and errors are silently ignored, because they cannot be detected.

The following constants are available for this function:

For functionId:

• BrickletDustDetector.FUNCTION_SET_DUST_DENSITY_CALLBACK_PERIOD = 2
• BrickletDustDetector.FUNCTION_SET_DUST_DENSITY_CALLBACK_THRESHOLD = 4
• BrickletDustDetector.FUNCTION_SET_DEBOUNCE_PERIOD = 6
• BrickletDustDetector.FUNCTION_SET_MOVING_AVERAGE = 10

BrickletDustDetector.SetResponseExpected(functionId, responseExpected)¶

Input:	functionId – Type: Byte, Range: See constants responseExpected – Type: Boolean

Changes the response expected flag of the function specified by the function ID parameter. This flag can only be changed for setter (default value: false) and callback configuration functions (default value: true). For getter functions it is always enabled.

Enabling the response expected flag for a setter function allows to detect timeouts and other error conditions calls of this setter as well. The device will then send a response for this purpose. If this flag is disabled for a setter function then no response is sent and errors are silently ignored, because they cannot be detected.

The following constants are available for this function:

For functionId:

• BrickletDustDetector.FUNCTION_SET_DUST_DENSITY_CALLBACK_PERIOD = 2
• BrickletDustDetector.FUNCTION_SET_DUST_DENSITY_CALLBACK_THRESHOLD = 4
• BrickletDustDetector.FUNCTION_SET_DEBOUNCE_PERIOD = 6
• BrickletDustDetector.FUNCTION_SET_MOVING_AVERAGE = 10

BrickletDustDetector.SetResponseExpectedAll(responseExpected)¶

Input:	responseExpected – Type: Boolean

Changes the response expected flag for all setter and callback configuration functions of this device at once.

Constants¶

BrickletDustDetector.DEVICE_IDENTIFIER¶

This constant is used to identify a Dust Detector Bricklet.

The GetIdentity() function and the IPConnection.EnumerateCallback callback of the IP Connection have a deviceIdentifier parameter to specify the Brick's or Bricklet's type.

BrickletDustDetector.DEVICE_DISPLAY_NAME¶

This constant represents the human readable name of a Dust Detector Bricklet.
