LabVIEW - Barometer Bricklet¶

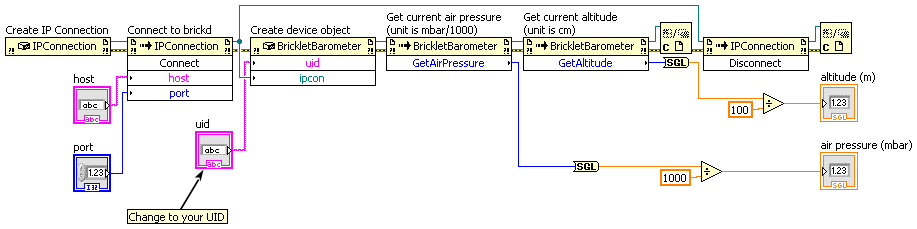

Simple¶

Download (Example Simple.vi)

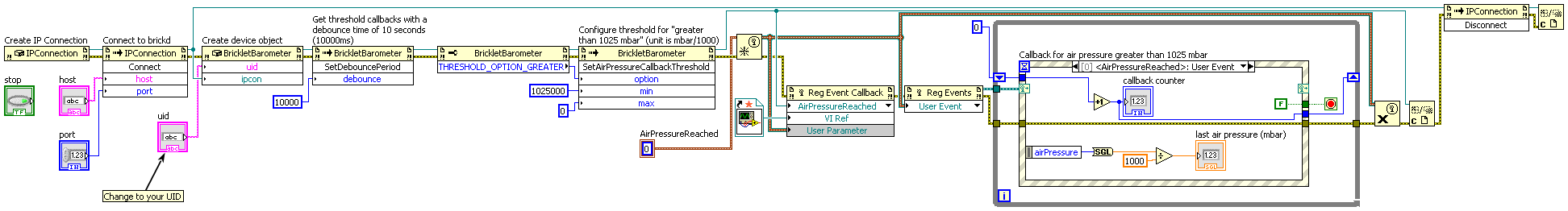

Threshold¶

Download (Example Threshold.vi), Download (Example Threshold - AirPressureReached Callback.vi)

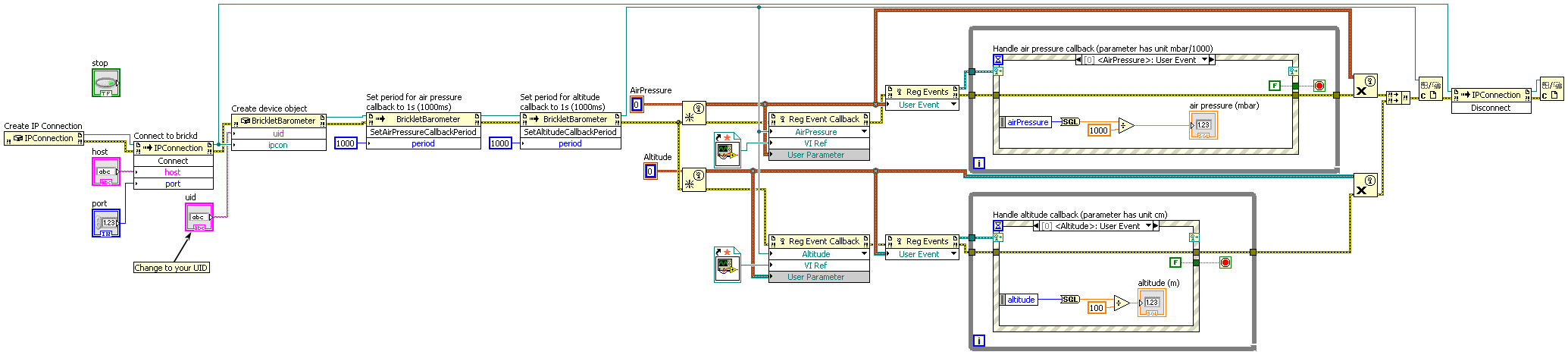

Callback¶

Download (Example Callback.vi), Download (Example Callback - AirPressure Callback.vi), Download (Example Callback - Altitude Callback.vi)

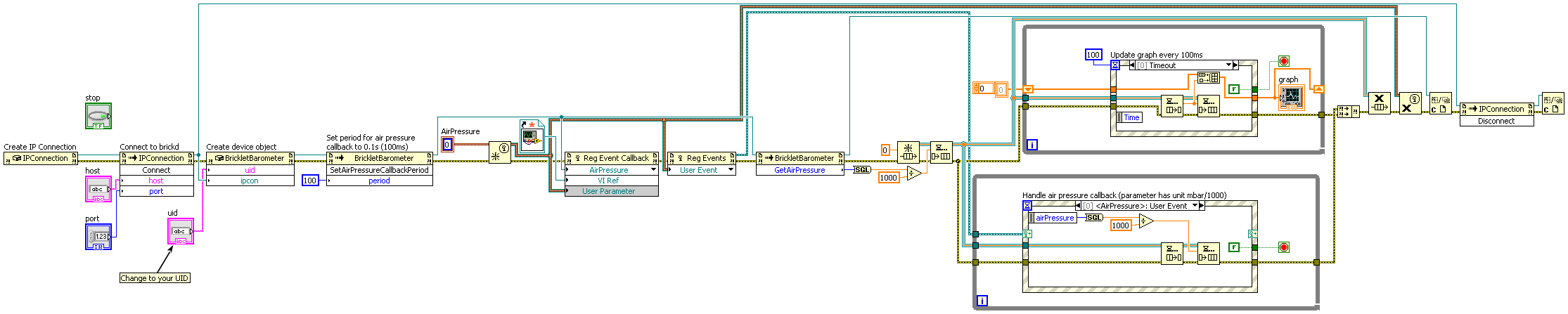

Graph¶

Download (Example Graph.vi), Download (Example Graph - AirPressure Callback.vi)

Basic Functions¶

BrickletBarometer(uid, ipcon) → barometer¶

Input:	uid – Type: String ipcon – Type: .NET Refnum (IPConnection)
Output:	barometer – Type: .NET Refnum (BrickletBarometer)

Creates an object with the unique device ID uid. This object can then be used after the IP Connection is connected.

BrickletBarometer.GetAirPressure() → airPressure¶

Output:	airPressure – Type: Int32, Unit: 1/1000 hPa, Range: [10000 to 1200000]

Returns the air pressure of the air pressure sensor.

If you want to get the air pressure periodically, it is recommended to use the AirPressureCallback callback and set the period with SetAirPressureCallbackPeriod().

BrickletBarometer.GetAltitude() → altitude¶

Output:	altitude – Type: Int32, Unit: 1 cm, Range: [-231 to 231 - 1]

Returns the relative altitude of the air pressure sensor. The value is calculated based on the difference between the current air pressure and the reference air pressure that can be set with SetReferenceAirPressure().

If you want to get the altitude periodically, it is recommended to use the AltitudeCallback callback and set the period with SetAltitudeCallbackPeriod().

BrickletBarometer.SetReferenceAirPressure(airPressure)¶

Input:	airPressure – Type: Int32, Unit: 1/1000 hPa, Range: [0, 10000 to 1200000], Default: 1013250

Sets the reference air pressure for the altitude calculation. Setting the reference to the current air pressure results in a calculated altitude of 0cm. Passing 0 is a shortcut for passing the current air pressure as reference.

Well known reference values are the Q codes QNH and QFE used in aviation.

BrickletBarometer.GetReferenceAirPressure() → airPressure¶

Output:	airPressure – Type: Int32, Unit: 1/1000 hPa, Range: [10000 to 1200000], Default: 1013250

Returns the reference air pressure as set by SetReferenceAirPressure().

Advanced Functions¶

BrickletBarometer.GetChipTemperature() → temperature¶

Output:	temperature – Type: Int16, Unit: 1/100 °C, Range: [-4000 to 8500]

Returns the temperature of the air pressure sensor.

This temperature is used internally for temperature compensation of the air pressure measurement. It is not as accurate as the temperature measured by the Temperature Bricklet or the Temperature IR Bricklet.

BrickletBarometer.SetAveraging(movingAveragePressure, averagePressure, averageTemperature)¶

Input:	movingAveragePressure – Type: Byte, Range: [0 to 25], Default: 25 averagePressure – Type: Byte, Range: [0 to 10], Default: 10 averageTemperature – Type: Byte, Range: [0 to 255], Default: 10

Sets the different averaging parameters. It is possible to set the length of a normal averaging for the temperature and pressure, as well as an additional length of a moving average for the pressure. The moving average is calculated from the normal averages. There is no moving average for the temperature.

Setting the all three parameters to 0 will turn the averaging completely off. If the averaging is off, there is lots of noise on the data, but the data is without delay. Thus we recommend to turn the averaging off if the Barometer Bricklet data is to be used for sensor fusion with other sensors.

New in version 2.0.1 (Plugin).

BrickletBarometer.GetAveraging() → movingAveragePressure, averagePressure, averageTemperature¶

Output:	movingAveragePressure – Type: Byte, Range: [0 to 25], Default: 25 averagePressure – Type: Byte, Range: [0 to 10], Default: 10 averageTemperature – Type: Byte, Range: [0 to 255], Default: 10

Returns the averaging configuration as set by SetAveraging().

New in version 2.0.1 (Plugin).

BrickletBarometer.SetI2CMode(mode)¶

Input:	mode – Type: Byte, Range: See constants, Default: 0

Sets the I2C mode. Possible modes are:

• 0: Fast (400kHz)
• 1: Slow (100kHz)

If you have problems with obvious outliers in the Barometer Bricklet measurements, they may be caused by EMI issues. In this case it may be helpful to lower the I2C speed.

It is however not recommended to lower the I2C speed in applications where a high throughput needs to be achieved.

The following constants are available for this function:

For mode:

• BrickletBarometer.I2C_MODE_FAST = 0
• BrickletBarometer.I2C_MODE_SLOW = 1

New in version 2.0.3 (Plugin).

BrickletBarometer.GetI2CMode() → mode¶

Output:	mode – Type: Byte, Range: See constants, Default: 0

Returns the I2C mode as set by SetI2CMode().

The following constants are available for this function:

For mode:

• BrickletBarometer.I2C_MODE_FAST = 0
• BrickletBarometer.I2C_MODE_SLOW = 1

New in version 2.0.3 (Plugin).

BrickletBarometer.GetIdentity() → uid, connectedUid, position, hardwareVersion, firmwareVersion, deviceIdentifier¶

Output:

uid – Type: String, Length: up to 8 connectedUid – Type: String, Length: up to 8 position – Type: Char, Range: ["a" to "h", "z"] hardwareVersion – Type: Byte[3] 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255] firmwareVersion – Type: Byte[3] 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255] deviceIdentifier – Type: Int32, Range: [0 to 216 - 1]

Returns the UID, the UID where the Bricklet is connected to, the position, the hardware and firmware version as well as the device identifier.

The position can be 'a', 'b', 'c', 'd', 'e', 'f', 'g' or 'h' (Bricklet Port). A Bricklet connected to an Isolator Bricklet is always at position 'z'.

The device identifier numbers can be found here. There is also a constant for the device identifier of this Bricklet.

Callback Configuration Functions¶

BrickletBarometer.SetAirPressureCallbackPeriod(period)¶

Input:	period – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 0

Sets the period with which the AirPressureCallback callback is triggered periodically. A value of 0 turns the callback off.

The AirPressureCallback callback is only triggered if the air pressure has changed since the last triggering.

BrickletBarometer.GetAirPressureCallbackPeriod() → period¶

Output:	period – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 0

Returns the period as set by SetAirPressureCallbackPeriod().

BrickletBarometer.SetAltitudeCallbackPeriod(period)¶

Input:	period – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 0

Sets the period with which the AltitudeCallback callback is triggered periodically. A value of 0 turns the callback off.

The AltitudeCallback callback is only triggered if the altitude has changed since the last triggering.

BrickletBarometer.GetAltitudeCallbackPeriod() → period¶

Output:	period – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 0

Returns the period as set by SetAltitudeCallbackPeriod().

BrickletBarometer.SetAirPressureCallbackThreshold(option, min, max)¶

Input:	option – Type: Char, Range: See constants, Default: "x" min – Type: Int32, Unit: 1/1000 hPa, Range: [-231 to 231 - 1], Default: 0 max – Type: Int32, Unit: 1/1000 hPa, Range: [-231 to 231 - 1], Default: 0

Sets the thresholds for the AirPressureReachedCallback callback.

The following options are possible:

Option	Description
'x'	Callback is turned off
'o'	Callback is triggered when the air pressure is outside the min and max values
'i'	Callback is triggered when the air pressure is inside the min and max values
'<'	Callback is triggered when the air pressure is smaller than the min value (max is ignored)
'>'	Callback is triggered when the air pressure is greater than the min value (max is ignored)

The following constants are available for this function:

For option:

• BrickletBarometer.THRESHOLD_OPTION_OFF = "x"
• BrickletBarometer.THRESHOLD_OPTION_OUTSIDE = "o"
• BrickletBarometer.THRESHOLD_OPTION_INSIDE = "i"
• BrickletBarometer.THRESHOLD_OPTION_SMALLER = "<"
• BrickletBarometer.THRESHOLD_OPTION_GREATER = ">"

BrickletBarometer.GetAirPressureCallbackThreshold() → option, min, max¶

Output:	option – Type: Char, Range: See constants, Default: "x" min – Type: Int32, Unit: 1/1000 hPa, Range: [-231 to 231 - 1], Default: 0 max – Type: Int32, Unit: 1/1000 hPa, Range: [-231 to 231 - 1], Default: 0

Returns the threshold as set by SetAirPressureCallbackThreshold().

The following constants are available for this function:

For option:

• BrickletBarometer.THRESHOLD_OPTION_OFF = "x"
• BrickletBarometer.THRESHOLD_OPTION_OUTSIDE = "o"
• BrickletBarometer.THRESHOLD_OPTION_INSIDE = "i"
• BrickletBarometer.THRESHOLD_OPTION_SMALLER = "<"
• BrickletBarometer.THRESHOLD_OPTION_GREATER = ">"

BrickletBarometer.SetAltitudeCallbackThreshold(option, min, max)¶

Input:	option – Type: Char, Range: See constants, Default: "x" min – Type: Int32, Unit: 1 cm, Range: [-231 to 231 - 1], Default: 0 max – Type: Int32, Unit: 1 cm, Range: [-231 to 231 - 1], Default: 0

Sets the thresholds for the AltitudeReachedCallback callback.

The following options are possible:

Option	Description
'x'	Callback is turned off
'o'	Callback is triggered when the altitude is outside the min and max values
'i'	Callback is triggered when the altitude is inside the min and max values
'<'	Callback is triggered when the altitude is smaller than the min value (max is ignored)
'>'	Callback is triggered when the altitude is greater than the min value (max is ignored)

The following constants are available for this function:

For option:

• BrickletBarometer.THRESHOLD_OPTION_OFF = "x"
• BrickletBarometer.THRESHOLD_OPTION_OUTSIDE = "o"
• BrickletBarometer.THRESHOLD_OPTION_INSIDE = "i"
• BrickletBarometer.THRESHOLD_OPTION_SMALLER = "<"
• BrickletBarometer.THRESHOLD_OPTION_GREATER = ">"

BrickletBarometer.GetAltitudeCallbackThreshold() → option, min, max¶

Output:	option – Type: Char, Range: See constants, Default: "x" min – Type: Int32, Unit: 1 cm, Range: [-231 to 231 - 1], Default: 0 max – Type: Int32, Unit: 1 cm, Range: [-231 to 231 - 1], Default: 0

Returns the threshold as set by SetAltitudeCallbackThreshold().

The following constants are available for this function:

For option:

• BrickletBarometer.THRESHOLD_OPTION_OFF = "x"
• BrickletBarometer.THRESHOLD_OPTION_OUTSIDE = "o"
• BrickletBarometer.THRESHOLD_OPTION_INSIDE = "i"
• BrickletBarometer.THRESHOLD_OPTION_SMALLER = "<"
• BrickletBarometer.THRESHOLD_OPTION_GREATER = ">"

BrickletBarometer.SetDebouncePeriod(debounce)¶

Input:	debounce – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 100

Sets the period with which the threshold callbacks

• AirPressureReachedCallback,
• AltitudeReachedCallback

are triggered, if the thresholds

• SetAirPressureCallbackThreshold(),
• SetAltitudeCallbackThreshold()

keep being reached.

BrickletBarometer.GetDebouncePeriod() → debounce¶

Output:	debounce – Type: Int64, Unit: 1 ms, Range: [0 to 232 - 1], Default: 100

Returns the debounce period as set by SetDebouncePeriod().

Callbacks¶

Callbacks can be registered to receive time critical or recurring data from the device. The registration is done by assigning a function to a callback property of the device object. The available callback property and their type of parameters are described below.

event BrickletBarometer.AirPressureCallback → sender, airPressure¶

Callback Output:	sender – Type: .NET Refnum (BrickletBarometer) airPressure – Type: Int32, Unit: 1/1000 hPa, Range: [10000 to 1200000]

This callback is triggered periodically with the period that is set by SetAirPressureCallbackPeriod(). The parameter is the air pressure of the air pressure sensor.

The AirPressureCallback callback is only triggered if the air pressure has changed since the last triggering.

event BrickletBarometer.AltitudeCallback → sender, altitude¶

Callback Output:	sender – Type: .NET Refnum (BrickletBarometer) altitude – Type: Int32, Unit: 1 cm, Range: [-231 to 231 - 1]

This callback is triggered periodically with the period that is set by SetAltitudeCallbackPeriod(). The parameter is the altitude of the air pressure sensor.

The AltitudeCallback callback is only triggered if the altitude has changed since the last triggering.

event BrickletBarometer.AirPressureReachedCallback → sender, airPressure¶

Callback Output:	sender – Type: .NET Refnum (BrickletBarometer) airPressure – Type: Int32, Unit: 1/1000 hPa, Range: [10000 to 1200000]

This callback is triggered when the threshold as set by SetAirPressureCallbackThreshold() is reached. The parameter is the air pressure of the air pressure sensor.

If the threshold keeps being reached, the callback is triggered periodically with the period as set by SetDebouncePeriod().

event BrickletBarometer.AltitudeReachedCallback → sender, altitude¶

Callback Output:	sender – Type: .NET Refnum (BrickletBarometer) altitude – Type: Int32, Unit: 1 cm, Range: [-231 to 231 - 1]

This callback is triggered when the threshold as set by SetAltitudeCallbackThreshold() is reached. The parameter is the altitude of the air pressure sensor.

If the threshold keeps being reached, the callback is triggered periodically with the period as set by SetDebouncePeriod().

Virtual Functions¶

Virtual functions don't communicate with the device itself, but operate only on the API bindings device object. They can be called without the corresponding IP Connection object being connected.

BrickletBarometer.GetAPIVersion() → apiVersion¶

Output:	apiVersion – Type: Byte[3] 0: major – Type: Byte, Range: [0 to 255] 1: minor – Type: Byte, Range: [0 to 255] 2: revision – Type: Byte, Range: [0 to 255]

Returns the version of the API definition implemented by this API bindings. This is neither the release version of this API bindings nor does it tell you anything about the represented Brick or Bricklet.

BrickletBarometer.GetResponseExpected(functionId) → responseExpected¶

Input:	functionId – Type: Byte, Range: See constants
Output:	responseExpected – Type: Boolean

Returns the response expected flag for the function specified by the function ID parameter. It is true if the function is expected to send a response, false otherwise.

For getter functions this is enabled by default and cannot be disabled, because those functions will always send a response. For callback configuration functions it is enabled by default too, but can be disabled by SetResponseExpected(). For setter functions it is disabled by default and can be enabled.

Enabling the response expected flag for a setter function allows to detect timeouts and other error conditions calls of this setter as well. The device will then send a response for this purpose. If this flag is disabled for a setter function then no response is sent and errors are silently ignored, because they cannot be detected.

The following constants are available for this function:

For functionId:

• BrickletBarometer.FUNCTION_SET_AIR_PRESSURE_CALLBACK_PERIOD = 3
• BrickletBarometer.FUNCTION_SET_ALTITUDE_CALLBACK_PERIOD = 5
• BrickletBarometer.FUNCTION_SET_AIR_PRESSURE_CALLBACK_THRESHOLD = 7
• BrickletBarometer.FUNCTION_SET_ALTITUDE_CALLBACK_THRESHOLD = 9
• BrickletBarometer.FUNCTION_SET_DEBOUNCE_PERIOD = 11
• BrickletBarometer.FUNCTION_SET_REFERENCE_AIR_PRESSURE = 13
• BrickletBarometer.FUNCTION_SET_AVERAGING = 20
• BrickletBarometer.FUNCTION_SET_I2C_MODE = 22

BrickletBarometer.SetResponseExpected(functionId, responseExpected)¶

Input:	functionId – Type: Byte, Range: See constants responseExpected – Type: Boolean

Changes the response expected flag of the function specified by the function ID parameter. This flag can only be changed for setter (default value: false) and callback configuration functions (default value: true). For getter functions it is always enabled.

Enabling the response expected flag for a setter function allows to detect timeouts and other error conditions calls of this setter as well. The device will then send a response for this purpose. If this flag is disabled for a setter function then no response is sent and errors are silently ignored, because they cannot be detected.

The following constants are available for this function:

For functionId:

• BrickletBarometer.FUNCTION_SET_AIR_PRESSURE_CALLBACK_PERIOD = 3
• BrickletBarometer.FUNCTION_SET_ALTITUDE_CALLBACK_PERIOD = 5
• BrickletBarometer.FUNCTION_SET_AIR_PRESSURE_CALLBACK_THRESHOLD = 7
• BrickletBarometer.FUNCTION_SET_ALTITUDE_CALLBACK_THRESHOLD = 9
• BrickletBarometer.FUNCTION_SET_DEBOUNCE_PERIOD = 11
• BrickletBarometer.FUNCTION_SET_REFERENCE_AIR_PRESSURE = 13
• BrickletBarometer.FUNCTION_SET_AVERAGING = 20
• BrickletBarometer.FUNCTION_SET_I2C_MODE = 22

BrickletBarometer.SetResponseExpectedAll(responseExpected)¶

Input:	responseExpected – Type: Boolean

Changes the response expected flag for all setter and callback configuration functions of this device at once.

Constants¶

BrickletBarometer.DEVICE_IDENTIFIER¶

This constant is used to identify a Barometer Bricklet.

The GetIdentity() function and the IPConnection.EnumerateCallback callback of the IP Connection have a deviceIdentifier parameter to specify the Brick's or Bricklet's type.

BrickletBarometer.DEVICE_DISPLAY_NAME¶

This constant represents the human readable name of a Barometer Bricklet.
